ExplosionProof Operator Devices - XHS Selector Switch Operators
ExplosionProof Operator Devices - XHS Selector Switch Operators
We know safety is the number one priority in hazardous industrial locations. That’s why Adalet has developed a full line of explosion proof heavy-duty pilot lights, pushbuttons and selector switches with uncompromising attention to the highest safety standards.
Whether you need a pushbutton or an explosion proof switch, Adalet guarantees you a durable and dependable product, made to withstand even the harshest environments. Our engineering department is always available to assist you in developing custom products tailored to your application.
Standard Features
Standard Features
• Die cast aluminum alloy. The barrels are all 3/4” NPSM thread. Maximum
installation thickness: 1 15/16” long barrel, 3/4” short barrel.

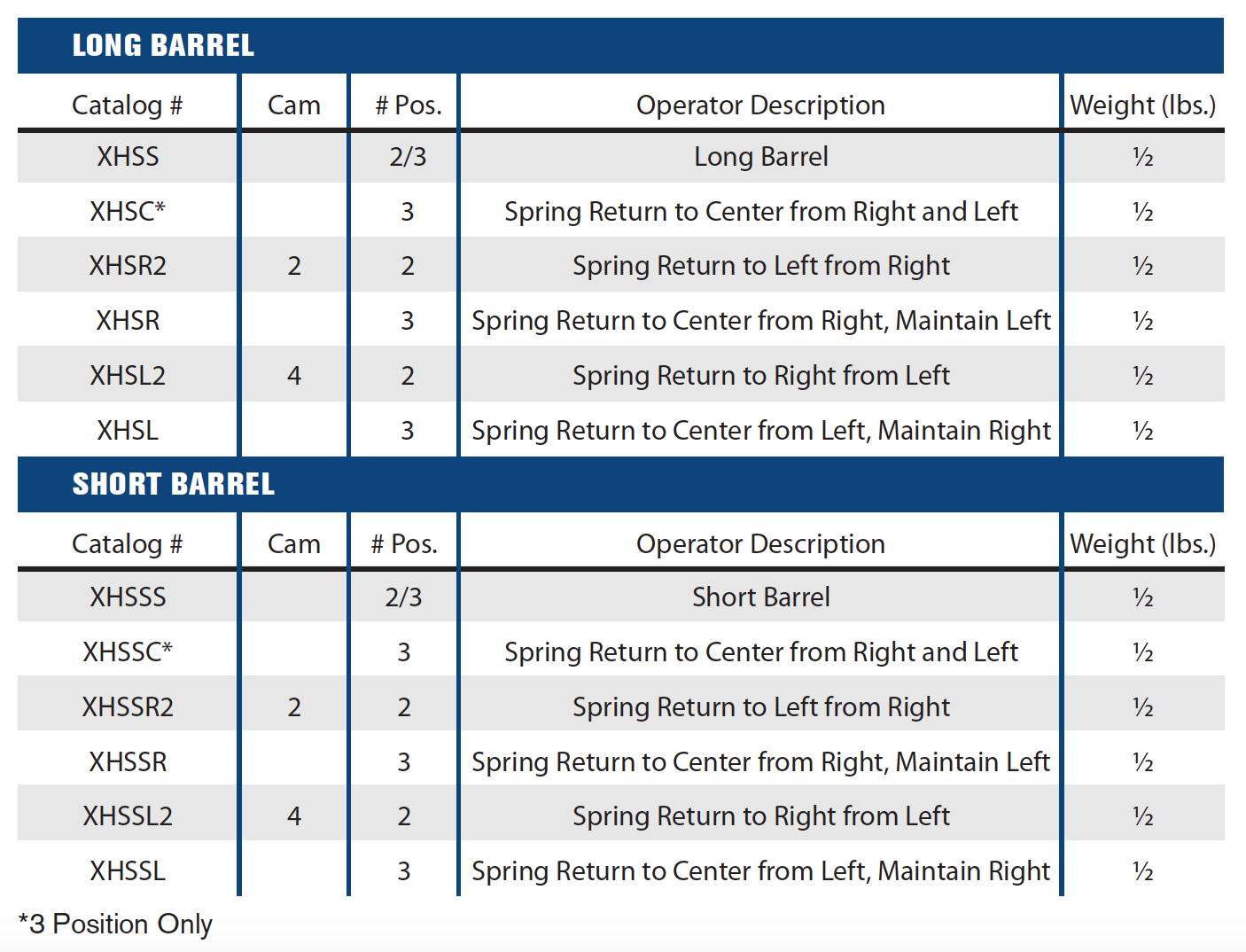

• Specify 2 position or 3 position. For 3-position, order must specify cam (see
contact block page for contact sequence chart).
• All operators have black molded nylon knobs. The exposed metal parts are
black anodized aluminum. Metal caps are also available in blue, gold, clear,
red or green with black knobs. Specify colors required.
• Contact blocks are not included with XHSS operators. Select contact block
and sequence operating cam from contact block page. (See accessories at
end of section)
