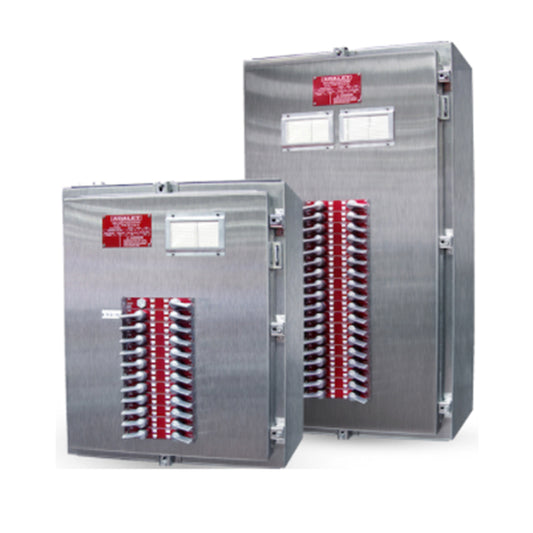

NEMA Type 4X Stainless Steel Panelboards
Adalet stainless steel panelboards are available in two versions: A dead front, swing panel version with quick access latches or a through the door operating handle version. The dead front, swing panel version isolates the wiring space, wiring gutter, and termination area which would otherwise be exposed when the door is opened. The external handle version offers the ability to operator the circuit breakers through the door with spring loaded, watertight, aluminum operating handles.
All Adalet stainless steel panelboards are equipped with copper bus, isolated neutral and ground bar, and GFI or EPF breakers. Gasketed covers provide IP66 and NEMA 4 / 4X rated protection for a water tight seal, and stainless steel cover bolts, removeable piano hinge, and breather / drain are included as standard features. The panelbaords are available as 18-42 circuit, main lug or back fed main breaker (100A max). Factory sealed panelboard versions are also available designed for use In Class I, Division 2, Groups BCD and Class I, Zone 1, AExde IIB areas.
-

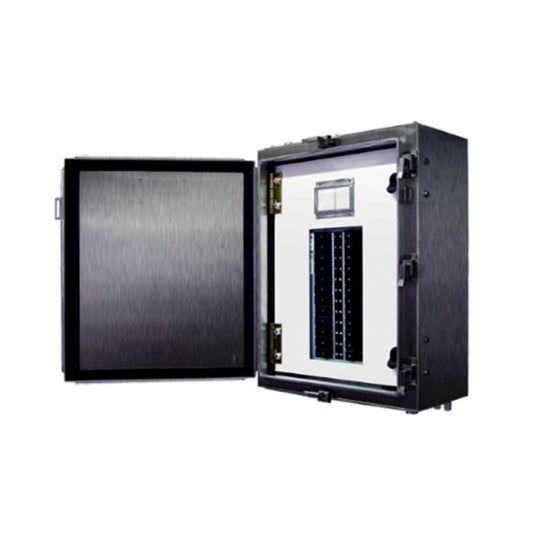

NEMA Type 4X Stainless Steel Dead Front Panelboards
Regular price $0.00 USDRegular priceUnit price per -
NEMA Type 4X Stainless Steel Panelboards - with Exterior Operating Handles
Regular price $0.00 USDRegular priceUnit price per
