Increased Safety Control Enclosures - CSC Series - Operator Enclosure
Increased Safety Control Enclosures - CSC Series - Operator Enclosure

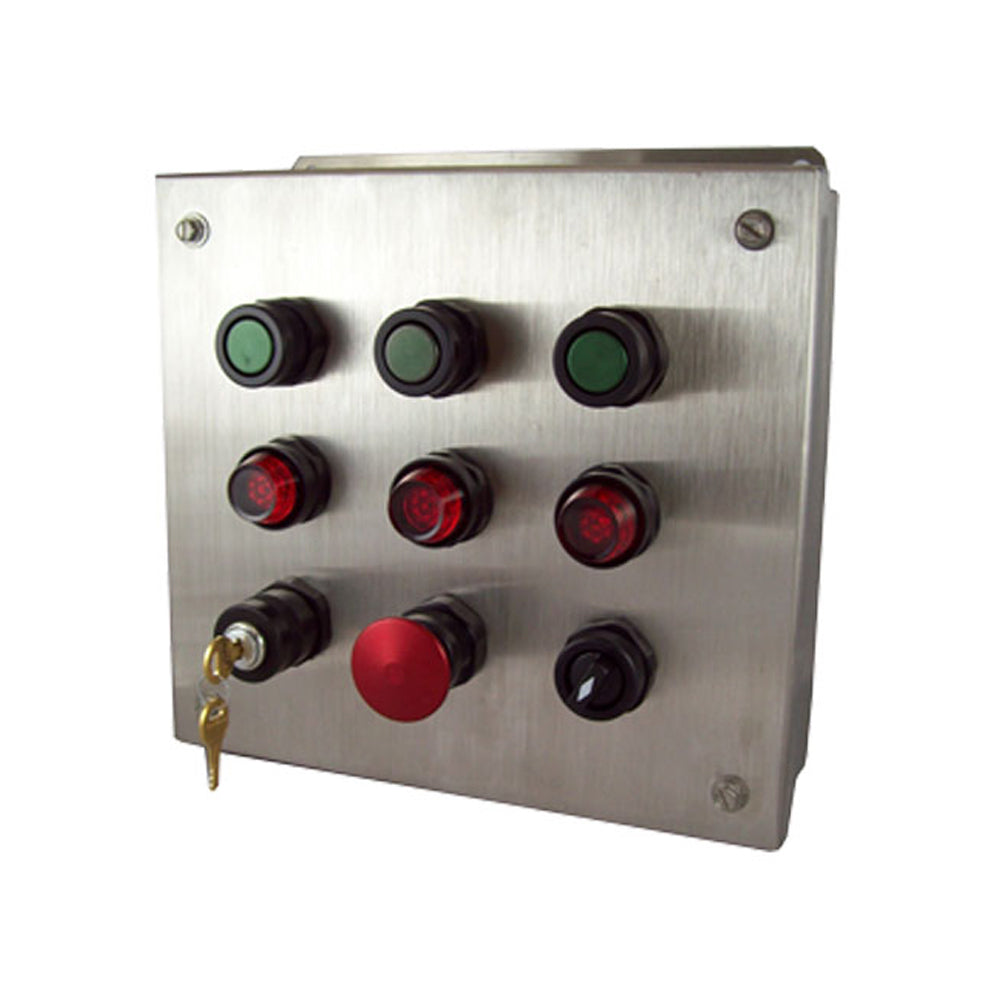

Adalet CN Series of Increased Safety Control Enclosures are intended to house electrical equipment that will not generate an arc or spark during normal operation and in which surface temperatures are controlled below incendive values. Increased Safety ‘e’ enclosures take design measures to resist impact and prevent the possibility of excessive heat and the ingress of water or dust, thus preventing any explosions from occurring. Adalet CN Series of Increased Safety Control Enclosures are available in stainless steel 316L and 304. Adalet can also supply custom-sized enclosures, operators and wiring of devices to rail-mounted terminal blocks for specific Increased Safety applications. Auxiliary devices include pilot lights, pushbuttons, mushroom head pushbuttons, emergency stop pushbuttons, selector switches, potentiometers, and measuring instruments. The CN Series is offered in sizes from 12”x24”x6” to 60”x36”x20”.
Standard Features
Standard Features
• Type 316L Stainless steel captive hex head, slotted cover screws
• Universal DIN rail mounting system (Except 050504/06)
• One-piece, NEMA 4 / IP66 water-tight gasket
• Internal/external grounding provisions
• Welded-on mounting flange with 0.31” clearance holes
• Ambient temperature range -40°C to +70°C

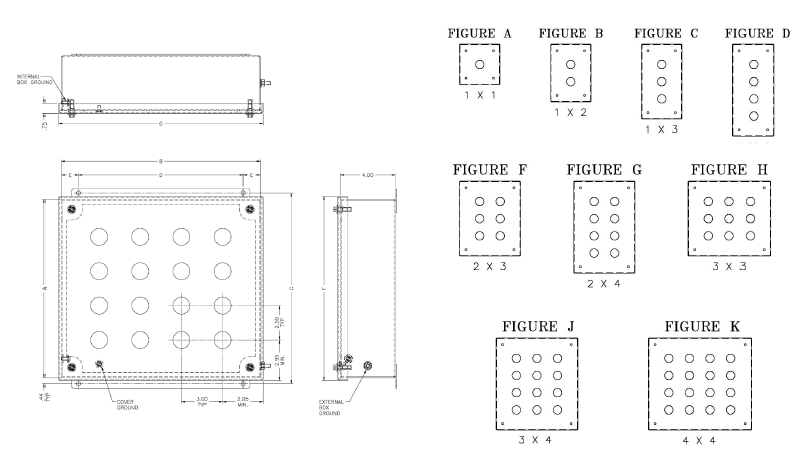

• 10 standard sizes with standard 30.5mm cover hole configurations
Design Options
Design Options
• Adalet increased safety operating devices
• Gland Plates (6” depths or greater) with continuous gasket
• Painted steel or stainless steel inner mounting panel
• Drilled entries / cut-outs
• Stopping plugs and breather / drain
• Terminal block assemblies and ground bars
• Cable glands
• Multiple coating options for additional corrosion resistance
Materials
Materials
• Enclosure and gland plates Type 304 or 316L
• Captive cover screws and hardware are 316L
• NEMA 4 / IP66 water-tight gasket is form in place (FIP)
• Box / cover constructed from 14 gauge (0.75) stainless steel with #3/#4 brush finish
• Gland plates constructed from 10 gauge (.1345) stainless steel with #3/#4 brush finish
• Silicone gasket
• Gland plate gasket constructed from 1/8” Bisco silicone with Acrylic PSA
