Explosionproof & Dust-Ignition Proof Fittings and Accessories - Sealing Fittings XY 40% Fill

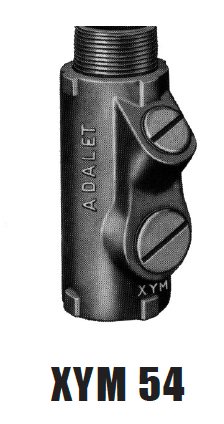

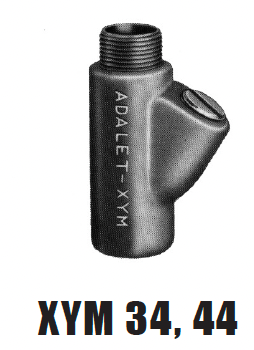

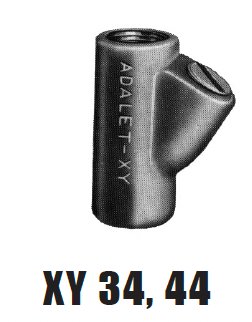

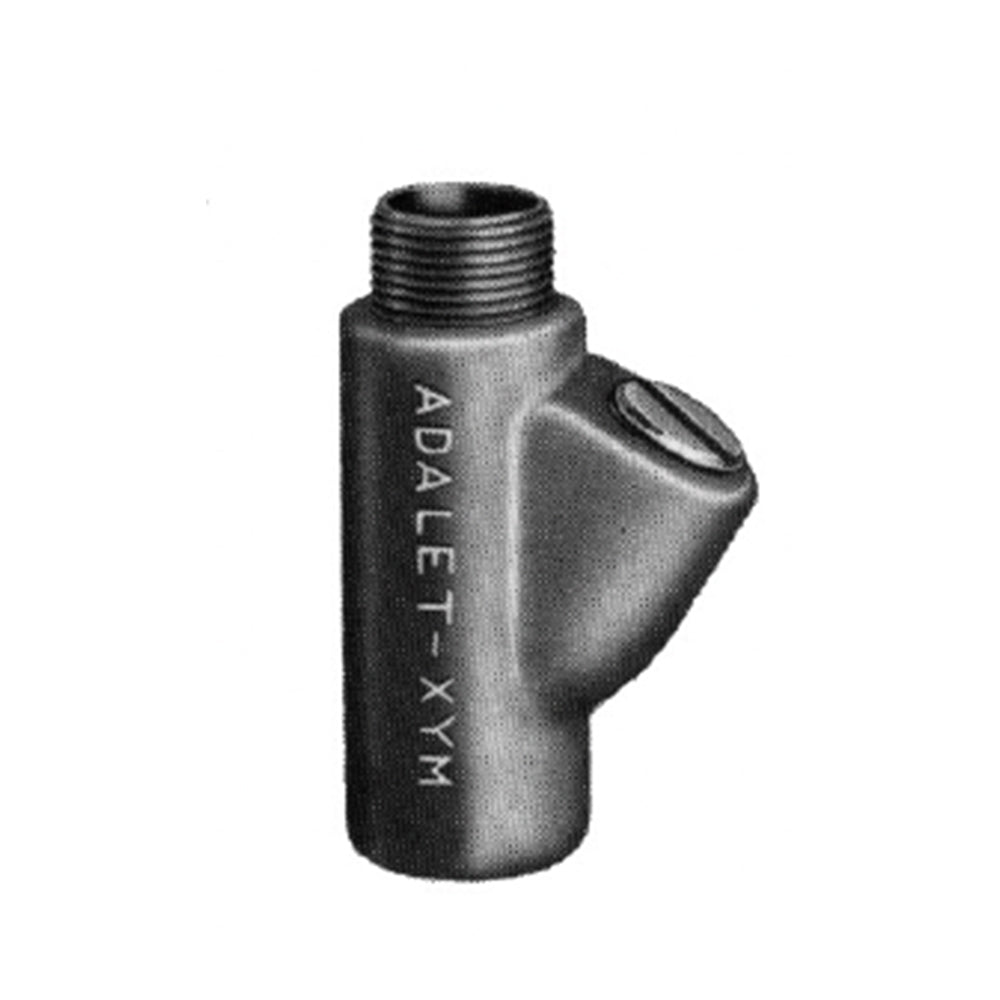

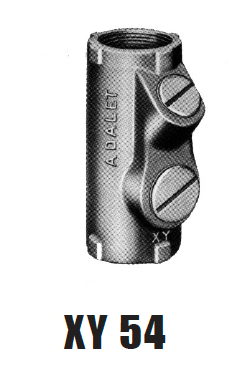

• Types XY and XYM Fittings: provided with threaded plugged openings into which the sealing cement is poured. Sizes 1-1/4” x 1-1/2” have large plugged openings in the lower hub to facilitate packing fiber around the wires to form a dam. Type XYM’s have removable threaded nipples. The two hubs are tapped simultaneously to assure alignment of the conduits, especially important to equipment manufacturers using short runs of conduit.

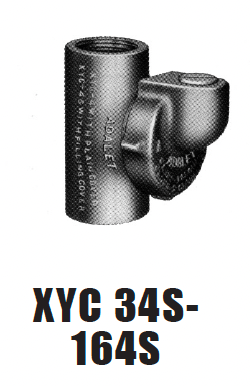

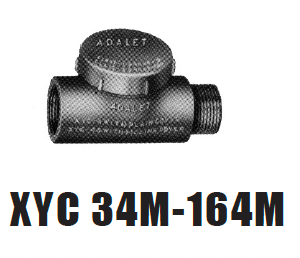

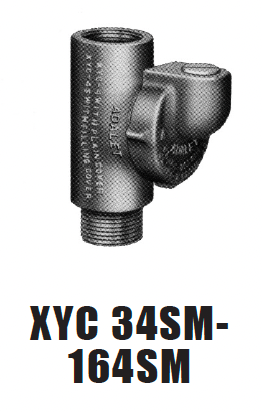

• FOR HORIZONTAL AND VERTICAL MOUNTING Type XYC Fittings: are for horizontal mounting only, with the cover opening in an upright position. XYCS fittings are for vertical or horizontal mounting, with removable threaded covers which can be turned to the desired Position for pouring in the sealing cement. The covers are interchangeable. The male-to-female types have removable threaded nipple.
