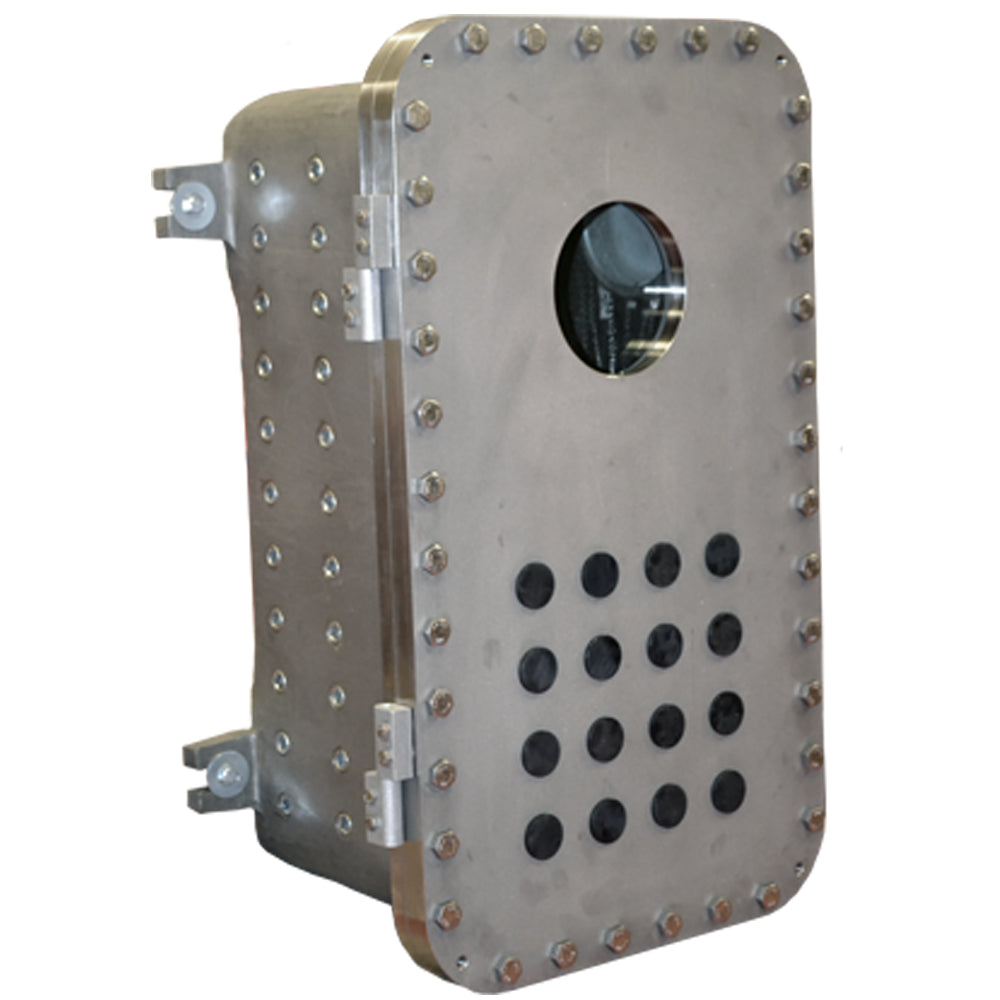

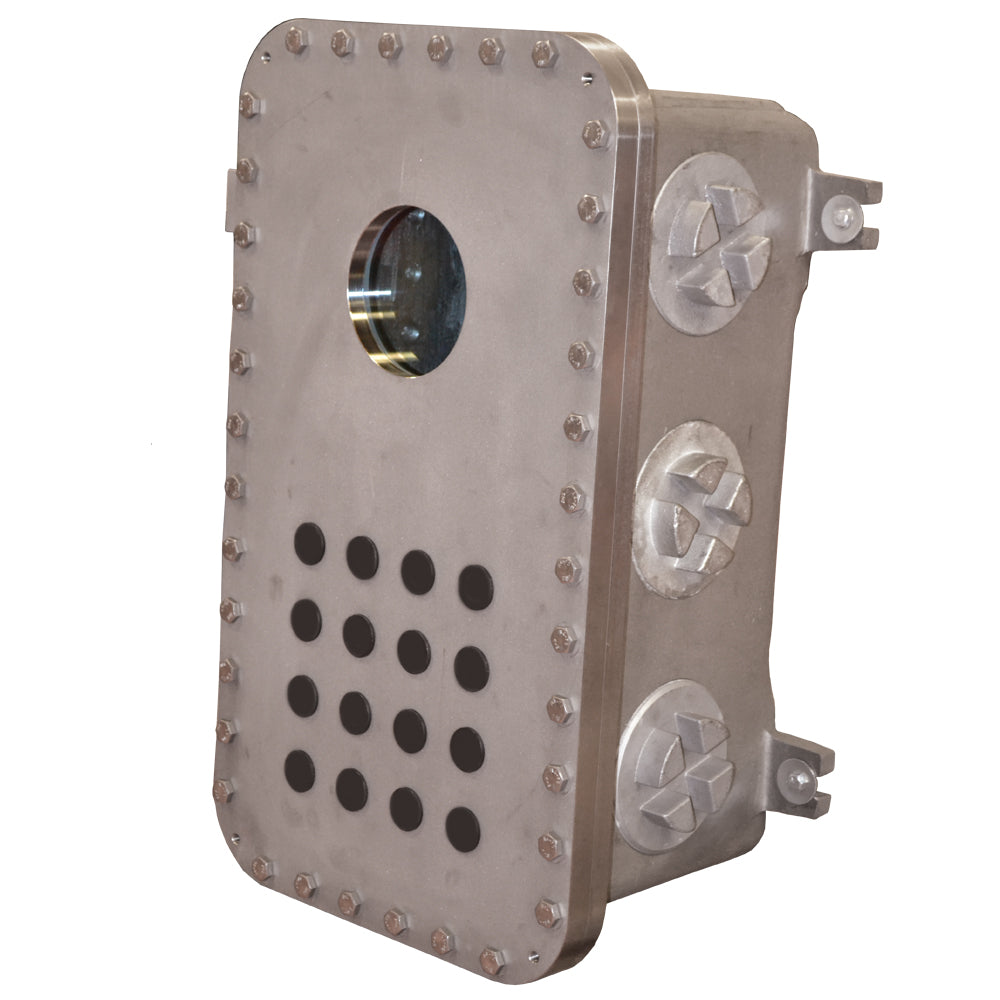

ExplosionProof Enclosures - XCESX Series
ExplosionProof Enclosures - XCESX Series
Explosionproof and dust-ignition proof enclosures are designed for applications where explosions could be caused by gases, dusts, and fibers. Intended for either indoor or outdoor use, these enclosures range in size and include a watertight gasket for NEMA 4X protection.
Standard Features
Standard Features

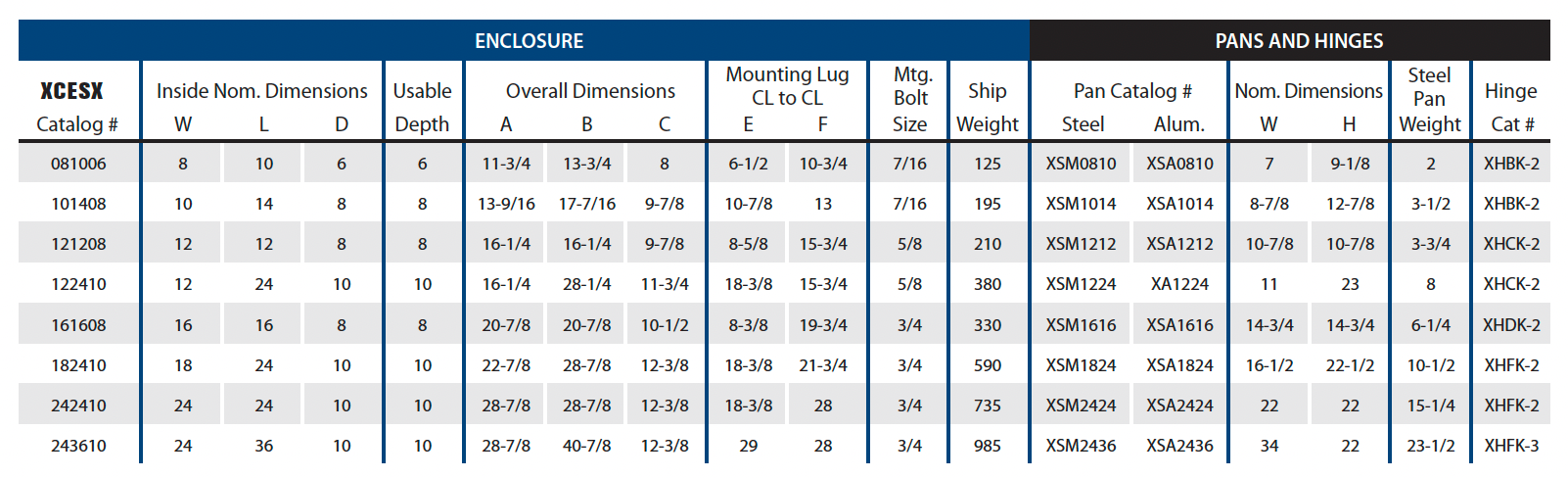

• 8 standard sizes available
• Pre-drilled for hinges (hinges included)
• Pre-drilled for sub-panel (sub-panel optional)
• One-piece, NEMA 4X/IP66 water-tight gasket
• Flat cover design
• Premium, high-strength stainless steel, metric cover bolts
• Internal/external grounding provisions
• Cast-on mounting feet
• Cover alignment device (installed on enclosures 12” x 24” and larger)

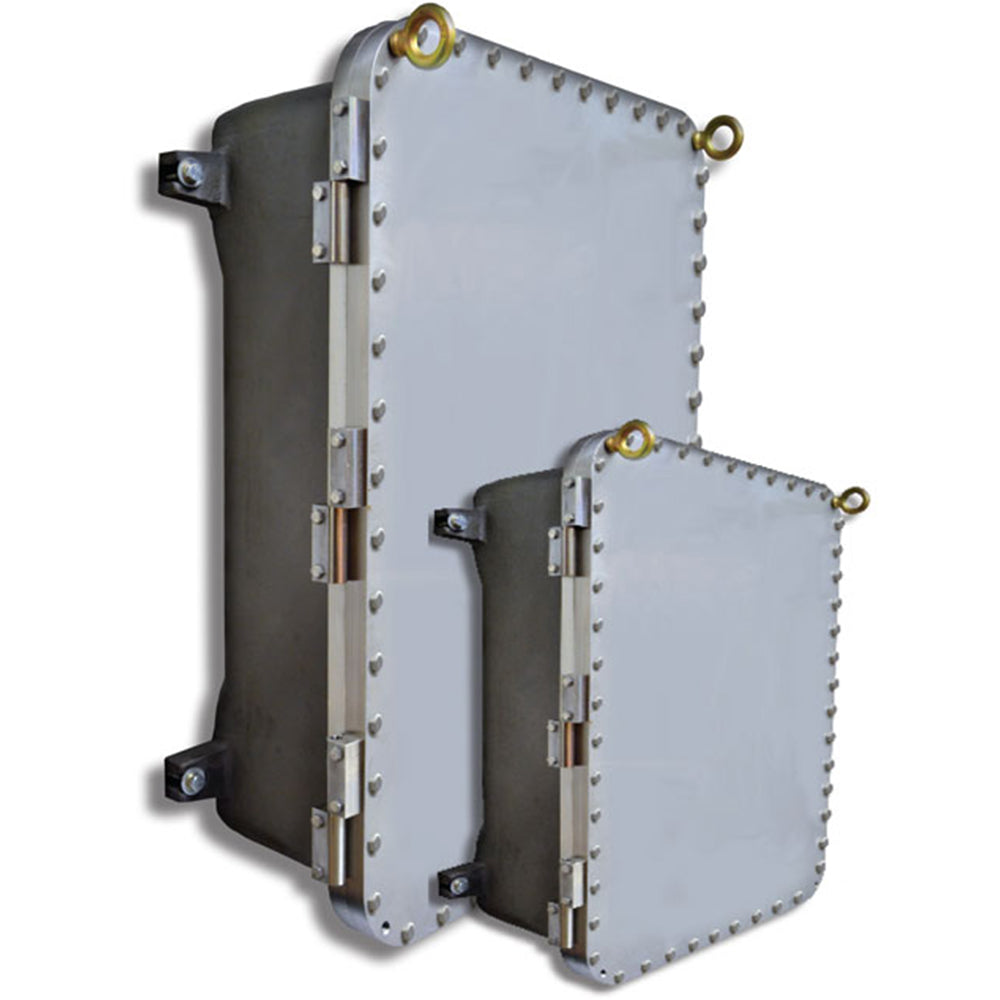

• Removable lifting-eyes (installed on enclosures 12” x 24” and larger)
Design Options
Design Options
• Sub-Panels – available in galvanized steel (XSM) or aluminum (XSA)
• Stainless steel hinge kits (with stainless steel hardware)
• Non-removable hinges
• Customer specified drilling and tapping
• Installation of operators and auxiliary devices
• Window kits
• Custom machining – milling, counter-boring, spot-facing, blind-tapped holes, etc
• Installation and wiring of internal terminal blocks and control components
• Multiple coating options for additional corrosion resistance
Material
Material
• Enclosures cast from 316L stainless steel
• Stainless steel metric cover bolts
• Nitrile “O”-rings
• XSM panels are #12 gauge galvanized steel (.108” thick)
• XSA panels are #10 gauge aluminum (.100 thick)
• Hinge blocks are 316L stainless steel with stainless steel hardware
