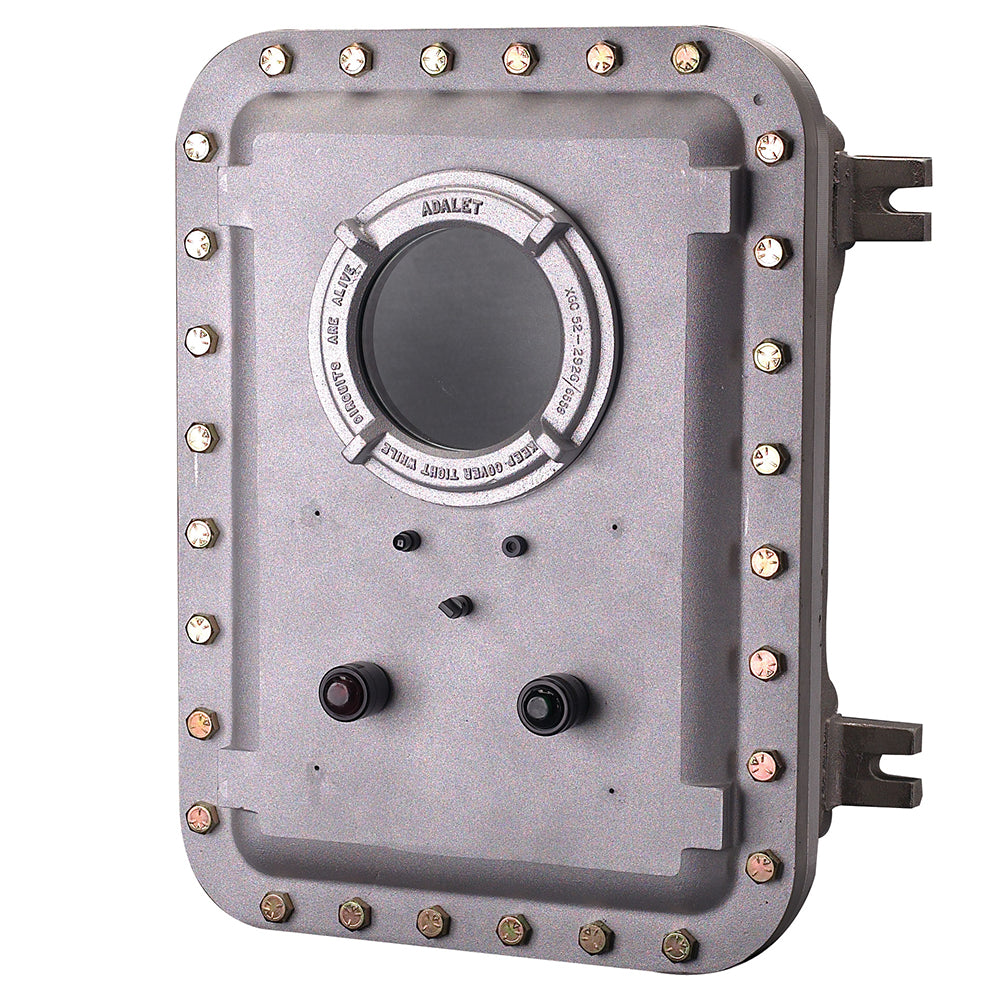

ExplosionProof Enclosures - XCEX Series

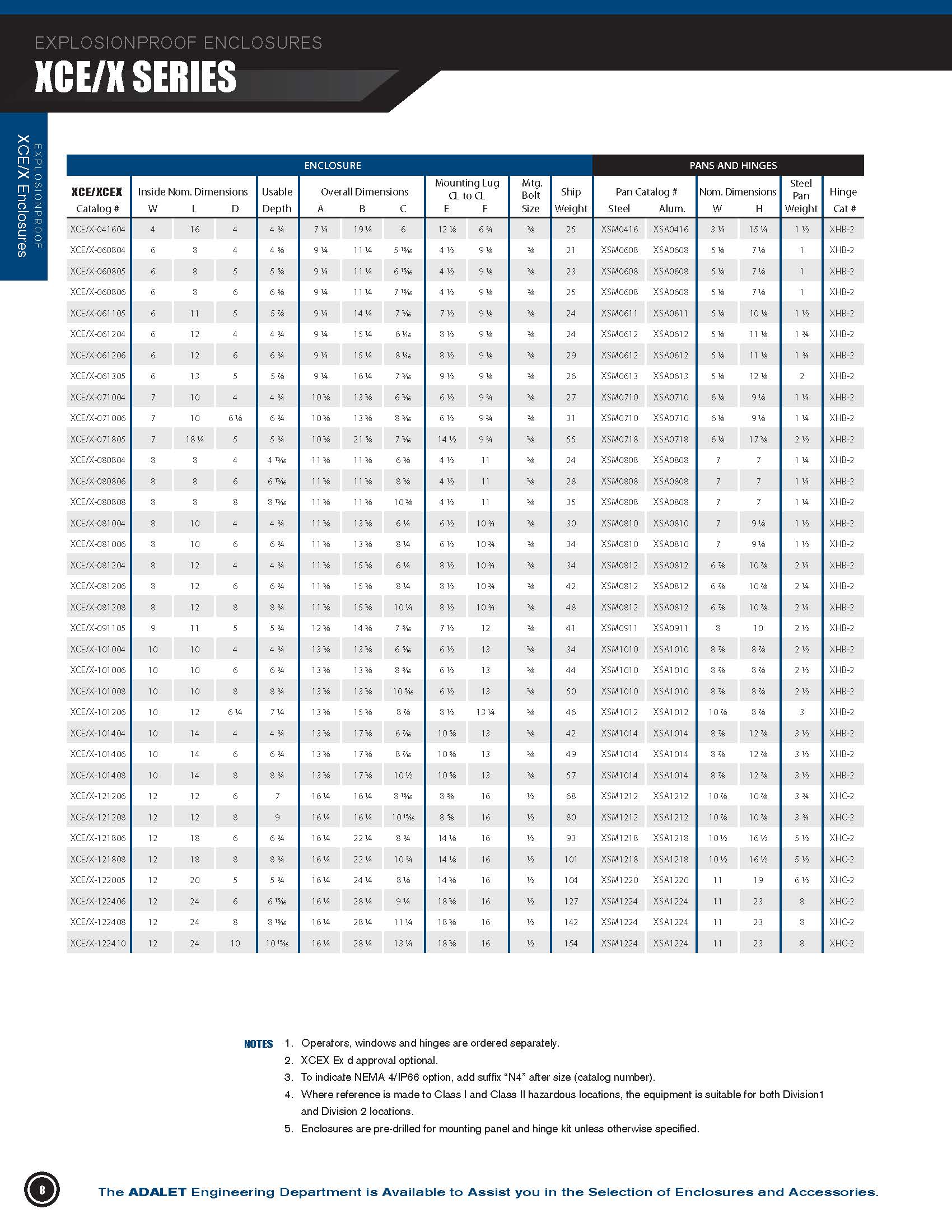

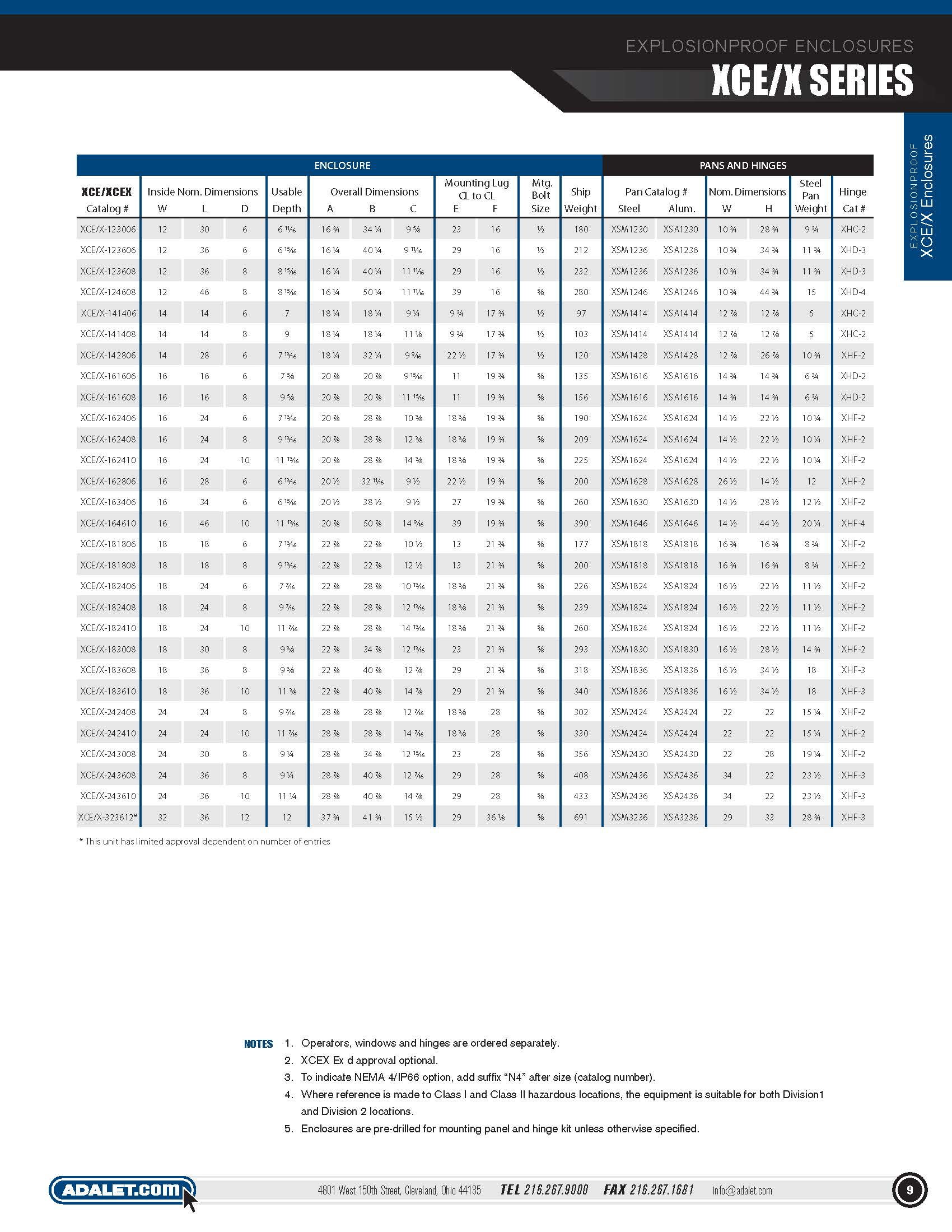

• 64 standard sizes available

• Pre-drilled for hinges (hinges optional)

• Pre-drilled for sub-panel (sub-panel optional)

• One-piece, NEMA 4/IP66 water-tight gasket

• Premium, high-strength steel, metric cover bolts

• Internal/external grounding provisions

• Cast-on mounting feet

• Tumblast surface preparation for uniform, natural, aluminum finish

• Cover alignment device (installed on enclosures 18” x 24” and larger)

• Removable lifting-eyes (installed on enclosures 18” x 24” and larger)

• Stainless steel cover bolts for NEMA 4X corrosion protection

• Sub-Panels – Available in galvanized steel (XSM) or aluminum (XSA)

• Aluminum hinge kits (with stainless steel hardware)

• Non-removable hinges

• Customer specified drilling and tapping

• Installation of operators and auxiliary devices

• Window kits

• Custom machining – milling, counter-boring, spot-facing, blind-tapped holes, etc

• Installation and wiring of internal terminal blocks and control components

• Cast-on company logos

• Multiple coating options for additional corrosion resistance

• Special mounting provisions

• Enclosures cast from proprietary 359 aluminum alloy – contains less than

3/10 of 1% copper (.003)

• Standard steel metric cover bolts are zinc-plated and coated

• Silicone “O”-rings in 060804 thru 122410

• Nitrile “O”-rings in 123006 and larger

• XSM panels are #12 gauge galvanized steel (.108” thick)

• XSA panels are #10 gauge aluminum (.100 thick)

• Hinge blocks are extruded 359 aluminum, pins and hardware are

303 stainless steel

IMPORTANT NOTES:

1. Operators, windows and hinges are ordered separately.

2. XCEX Ex d approval optional.

3. To indicate NEMA 4/IP66 option, add suffix “N4” after size (catalog number).

4. Where reference is made to Class I and Class II hazardous locations, the equipment is suitable for both Division1and Division 2 locations.

5. Enclosures are pre-drilled for mounting panel and hinge kit unless otherwise specified.
