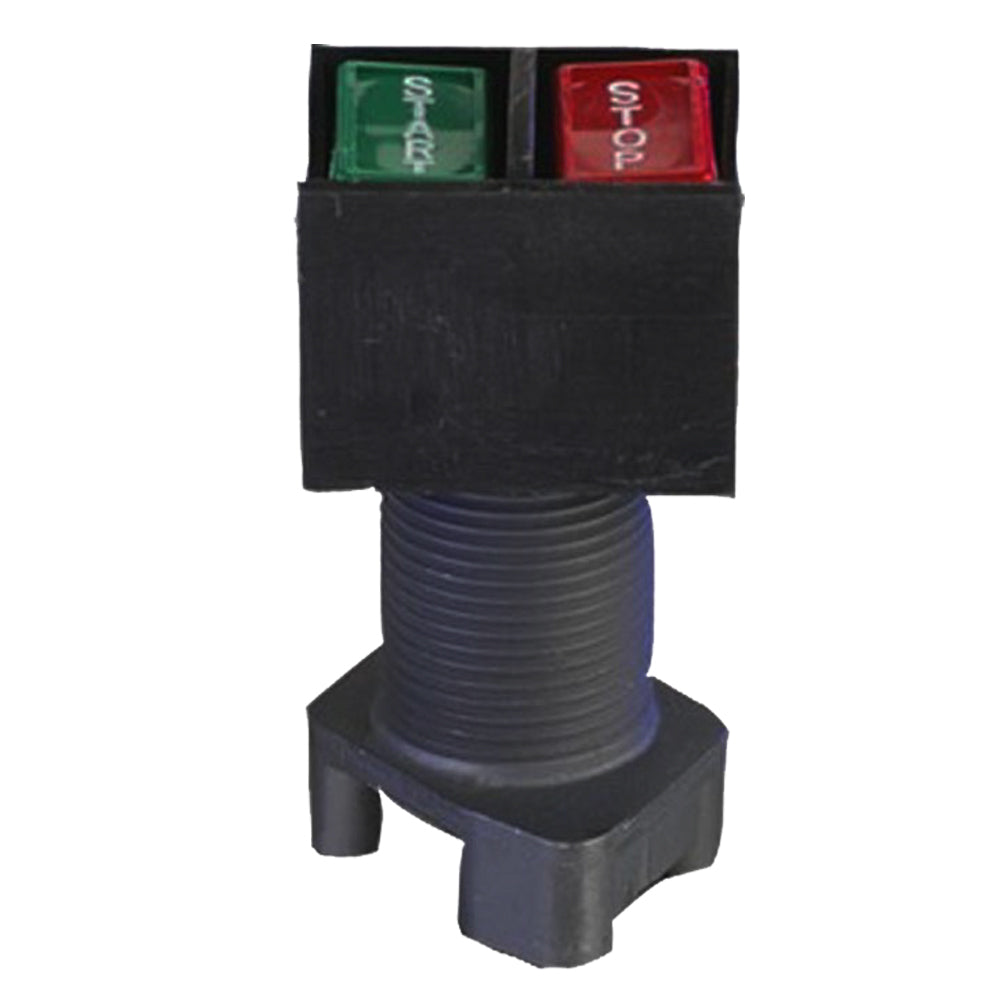

ExplosionProof Operator Devices - XHD Explosionproof/Flameproof Dual Pushuttons
ExplosionProof Operator Devices - XHD Explosionproof/Flameproof Dual Pushuttons
We know safety is the number one priority in hazardous industrial locations. That’s why Adalet has developed a full line of explosion proof heavy-duty pilot lights, pushbuttons and selector switches with uncompromising attention to the highest safety standards.
Whether you need a pushbutton or an explosion proof switch, Adalet guarantees you a durable and dependable product, made to withstand even the harshest environments. Our engineering department is always available to assist you in developing custom products tailored to your application.
Standard Features
Standard Features
• Durable die-cast aluminum barrels
• Exposed aluminum components are anodized for superior corrosion and UV resistance
• Heavy-duty nylon buttons (one green, one red), pre-stamped “START” and “STOP”
• Long-lasting anodized aluminum heads (mushroom heads only)
• Designed for installation into ¾” NPSM entries
Design Options
Design Options
• Short and long-barrel (for enclosure covers thicker than ¾”)
• Pad-lock provision (sold separately)
• Various contact block configurations
• Installed in Adalet enclosures with no installation charge
Material
Material
• Barrels are 6061-T6 aluminum
• Caps are anodized 6061-T6 aluminum
• Buttons are nylon
