ExplosionProof Operator Devices - XHK Keylock Selector Switch Operators
ExplosionProof Operator Devices - XHK Keylock Selector Switch Operators
We know safety is the number one priority in hazardous industrial locations. That’s why Adalet has developed a full line of explosion proof heavy-duty pilot lights, pushbuttons and selector switches with uncompromising attention to the highest safety standards.
Whether you need a pushbutton or an explosion proof switch, Adalet guarantees you a durable and dependable product, made to withstand even the harshest environments. Our engineering department is always available to assist you in developing custom products tailored to your application.
Standard Features
Standard Features

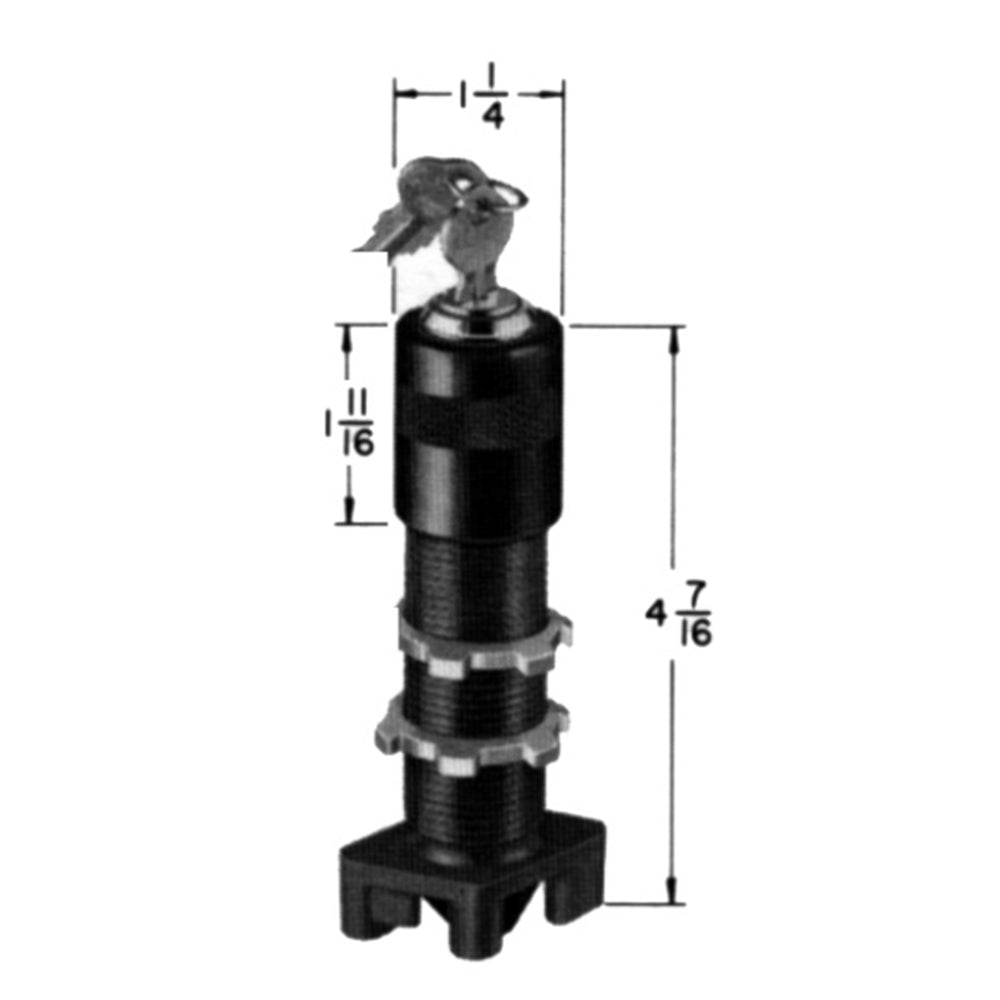

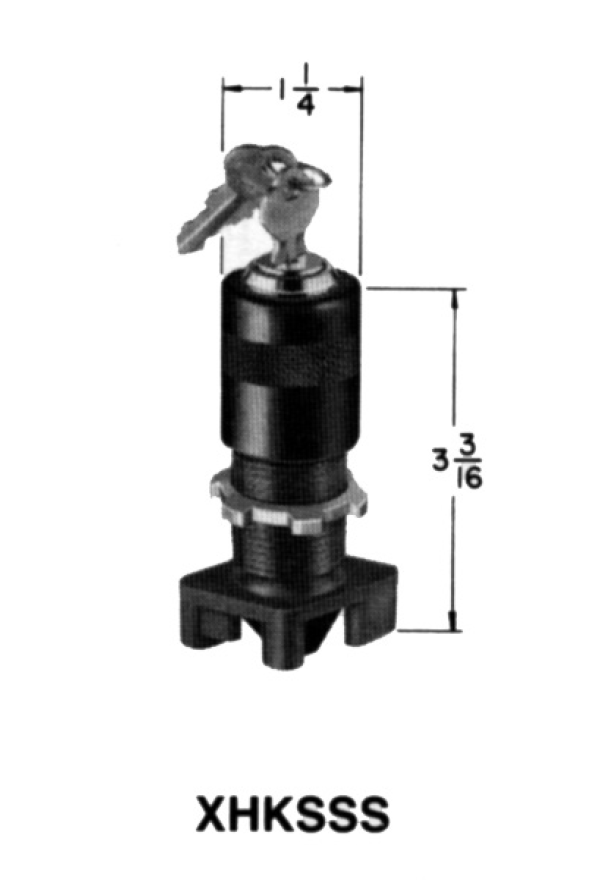

• The barrels are all 3/4” NPSM thread. Max. installation thickness: 1-15/16”long barrel,
3/4” short barrel.
• Selector switch operators can be used as 2 position or 3 position by removal of knob and
rotating knob 180°.
• The actuator cam which operates the plungers on the contact blocks can be readily
changed for various contact sequences. FOR 3 POSITION, ORDERS MUST STATE
CAM NUMBER.
• The exposed metal parts are black anodized aluminum.
• Contact blocks are not included with operators.
Important Note
Important Note
FOR 2-POSITION
Key removable in one position only. For key
removal in two positions, consult factory.
FOR 3-POSITION
Key normally removable in one position only
specify right, center or left. For key removal in
more than one position, consult factory.
