ExplosionProof Operator Devices - XLP Pushbuttons
ExplosionProof Operator Devices - XLP Pushbuttons
We know safety is the number one priority in hazardous industrial locations. That’s why Adalet has developed a full line of explosion proof heavy-duty pilot lights, pushbuttons and selector switches with uncompromising attention to the highest safety standards.
Whether you need a pushbutton or an explosion proof switch, Adalet guarantees you a durable and dependable product, made to withstand even the harshest environments. Our engineering department is always available to assist you in developing custom products tailored to your application.
Standard Features
Standard Features
• Durable die-cast aluminum barrels
• Exposed aluminum components are anodized for superior corrosion
and UV resistance
• Guarded lens for protection against impact
• Designed for installation into ¾” NPSM entries
• Standard 120V slide-base lamp
Design Options
Design Options

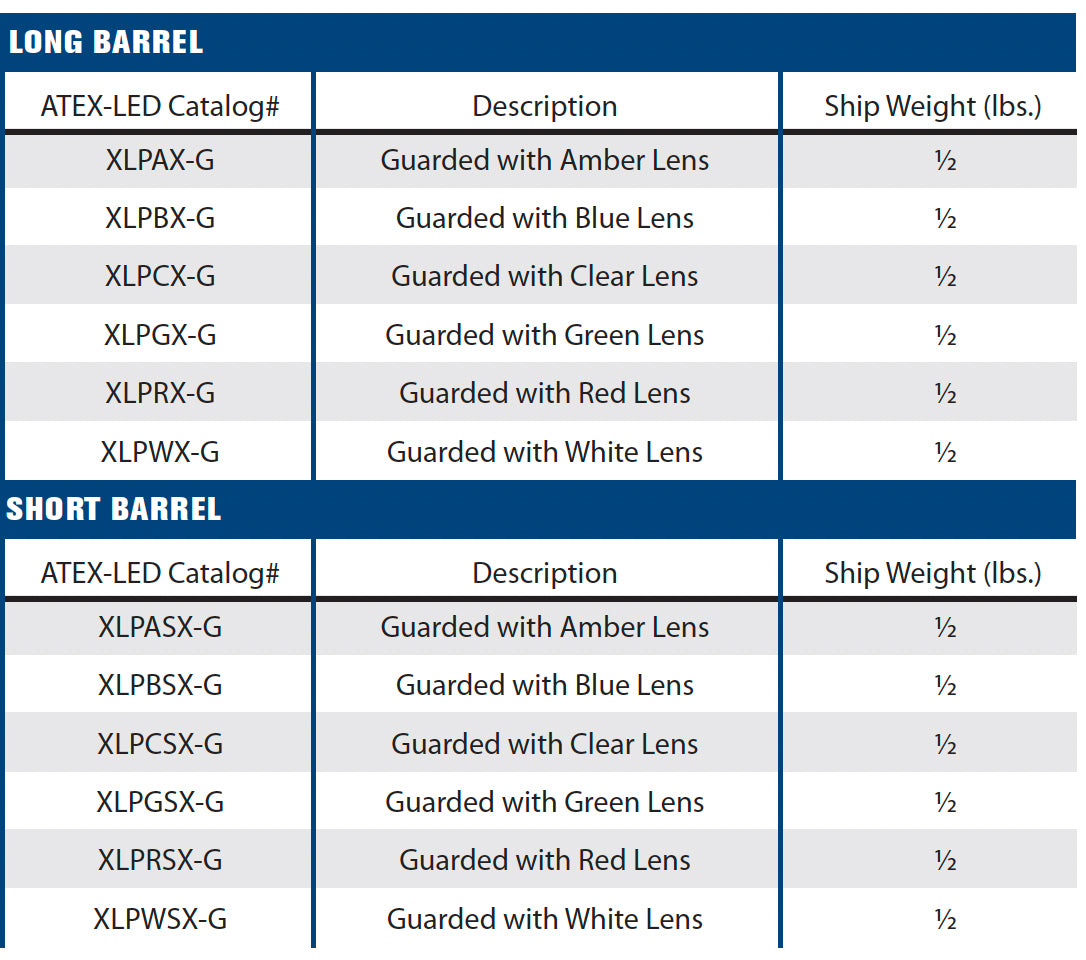

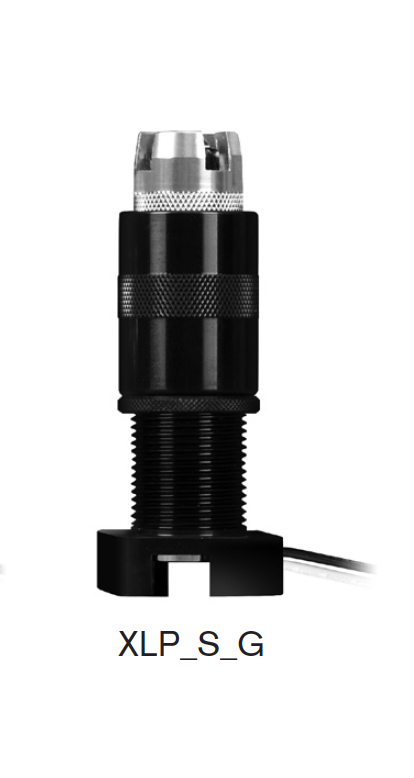

• Short and long-barrel (for enclosure covers thicker than ¾”)
• Variety of colors to choose from
• LED or incandescent bulbs – 12V, 24V, and 120V options
• Various contact block configurations (sold separately)
• Installed in Adalet enclosures with no installation charge
• Protective boots available for N4X requirements
Material
Material
• Barrels are 6061-T6 aluminum
• Caps are anodized 6061-T6 aluminum
• Buttons are nylon
• Mushroom head buttons are anodized 6061-T6 aluminum
• Lenses are tempered glass
