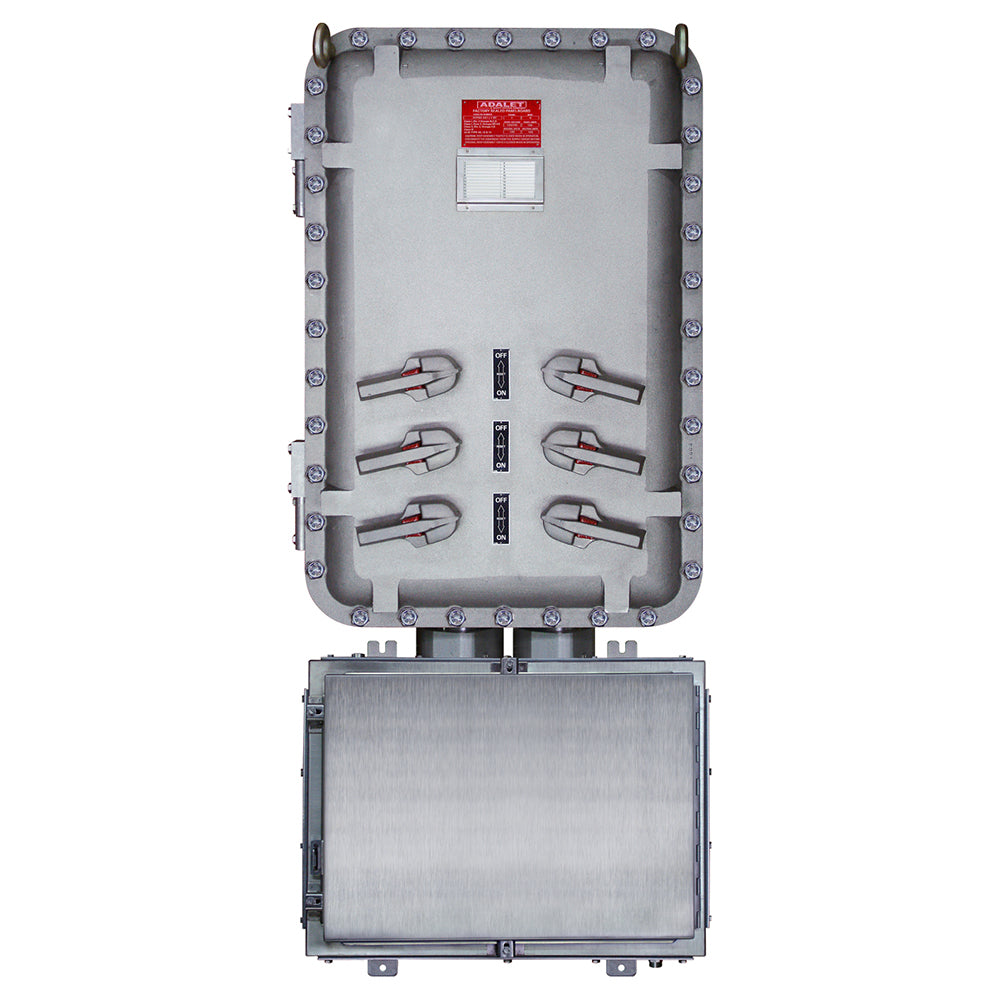

Factory Sealed Division 2 Panelboards - X2PB - Power Panel Main Lug Only
Factory Sealed Division 2 Panelboards - X2PB - Power Panel Main Lug Only
This design offers sufficient gutter space on sides to allow through wiring and easy lug connection. All enclosures are furnished with hinges, stainless steel quad lead cover bolts and are provided with NEMA 4 gasketing. All covers are removable for clear access to breakers and gutter space. The compact design of rectangular housings permits close grouping on switch racks and other structures. No additional space is required for cover removal except from the front.
Standard Features
Standard Features
• Cast aluminum breaker enclosure and stainless steel terminal enclosure
• Factory installed breakers are wired and sealed from the factory

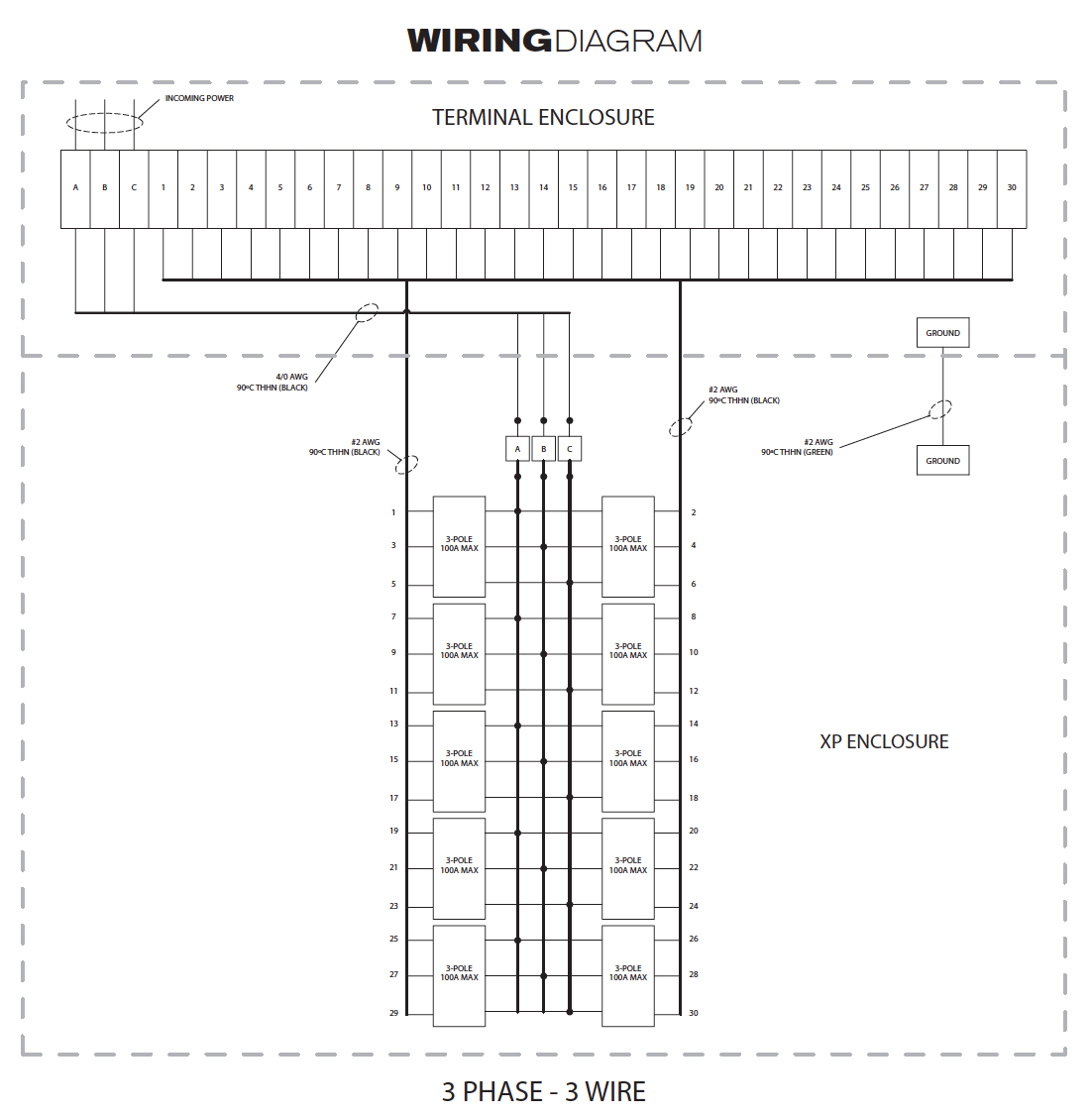

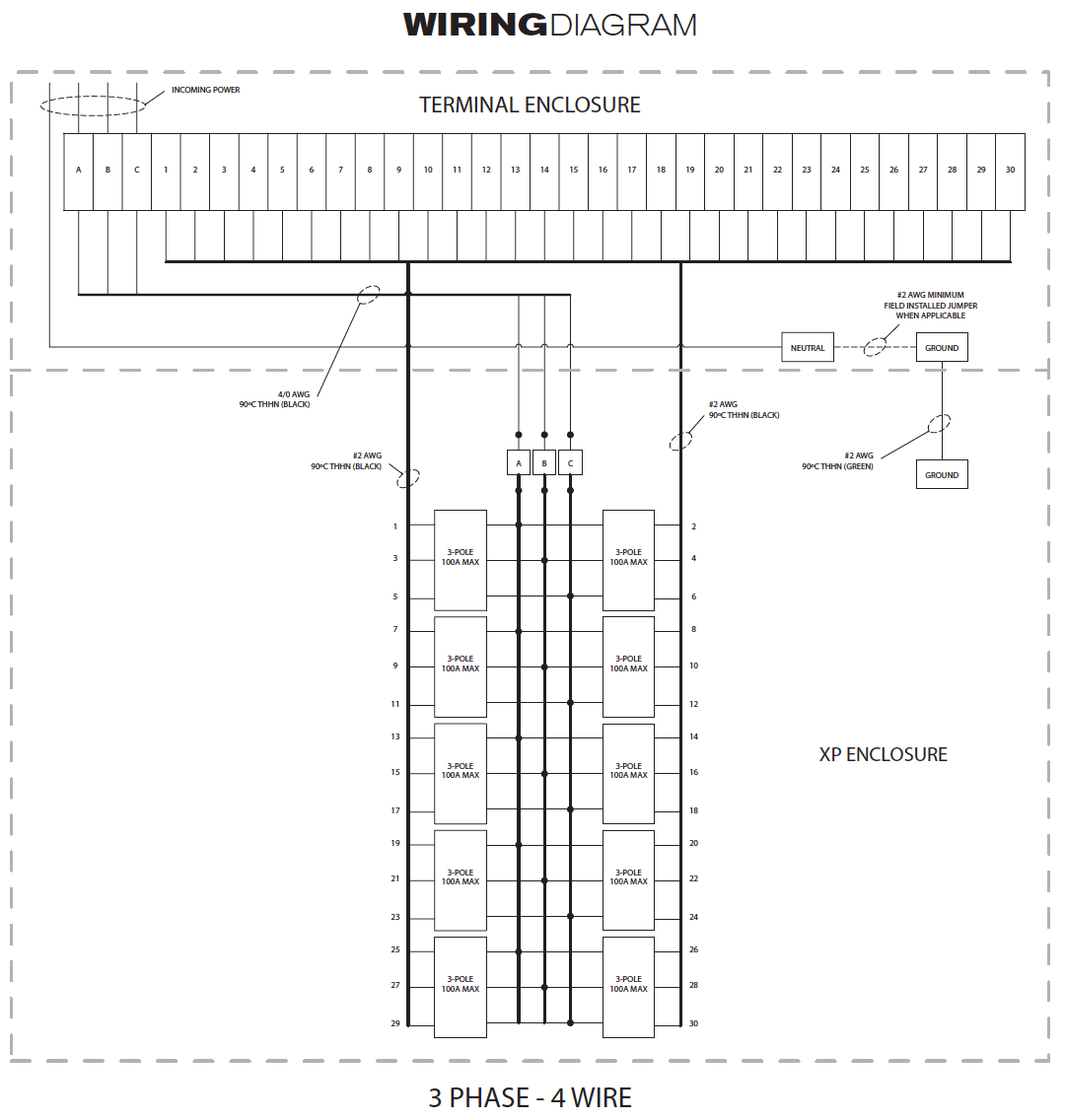

• Terminal assembly wired to circuit breakers
• Spring-loaded through the door circuit breaker handles for 1P, 2P, and 3P breakers
• Padlock provision for breaker handles
• Copper bus bars
• Aluminum hinge with stainless steel hardware
• Pre-drilled for Eaton PRL1A / PRL2A / PRL3A panelboard chassis
• Circuit directory card on front cover
• One-piece, NEMA 4 water-tight gasket
• Premium, high-strength stainless steel quick thread cover bolts
• Internal grounding provisions
• Cast-on mounting feet
• Tumblast surface preparation for uniform, natural, aluminum finish
• Standard drilled & tapped conduit configurations
Design Options
Design Options
• Sub-Panels – Available in galvanized steel (XSM) or aluminum (XSA)
• Aluminum hinge kits (with stainless steel hardware)
• Non-removable hinges
• Customer specified drilling and tapping
• Installation of operators and auxiliary devices
• Custom machining – milling, counter-boring, spot-facing, blind-tapped holes, etc
• Installation and wiring of internal terminal blocks and control components
• UL Listed NNNY populated / wired control panels
• Multiple coating options for additional corrosion resistance
• Captive cover bolts
• Quad-lead cover bolts
• Auxiliary switches, breather/drain, shunt trip, under-voltage release
Material
Material
• Enclosures cast from proprietary 359 aluminum alloy
• Standard stainless steel cover bolts are 316L
• Hinge blocks are 359 aluminum, pins and hardware are 303 stainless steel
