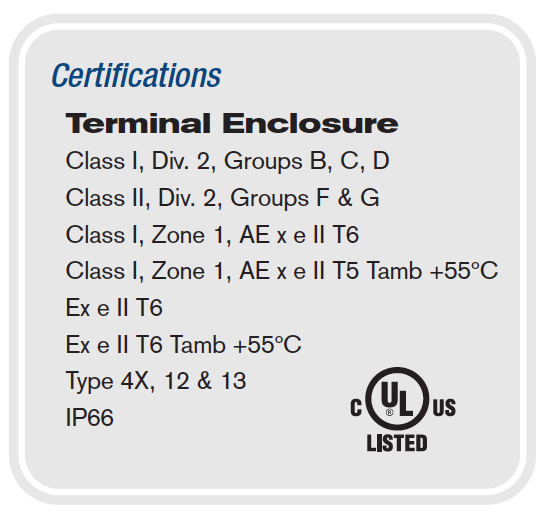

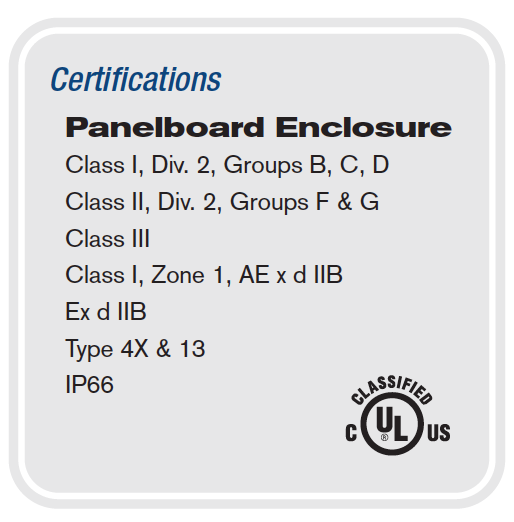

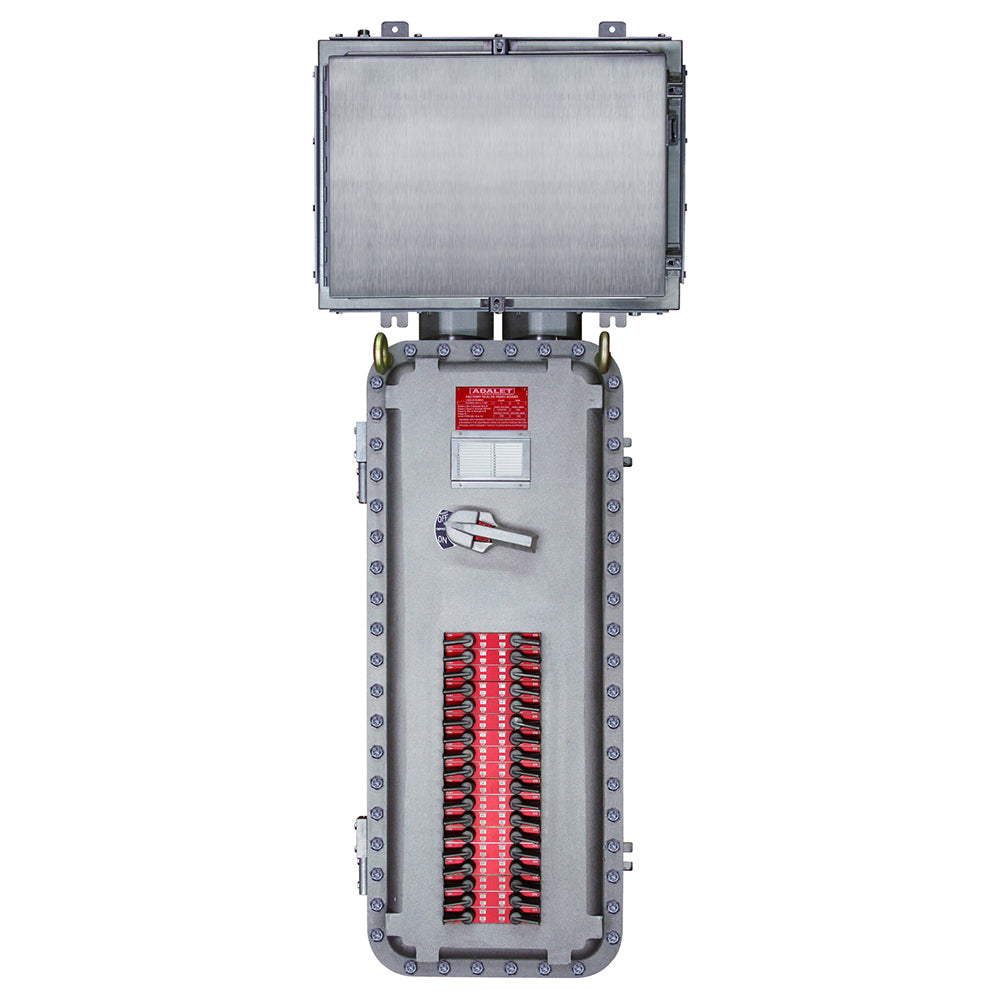

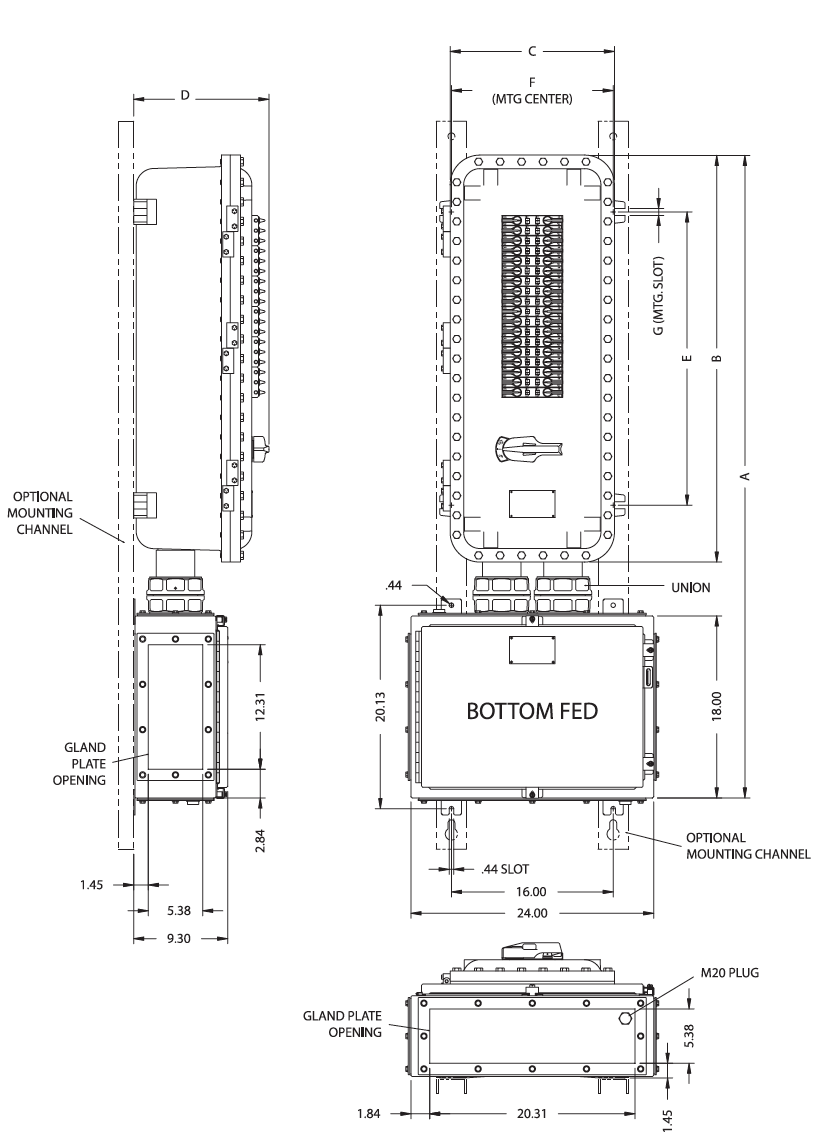

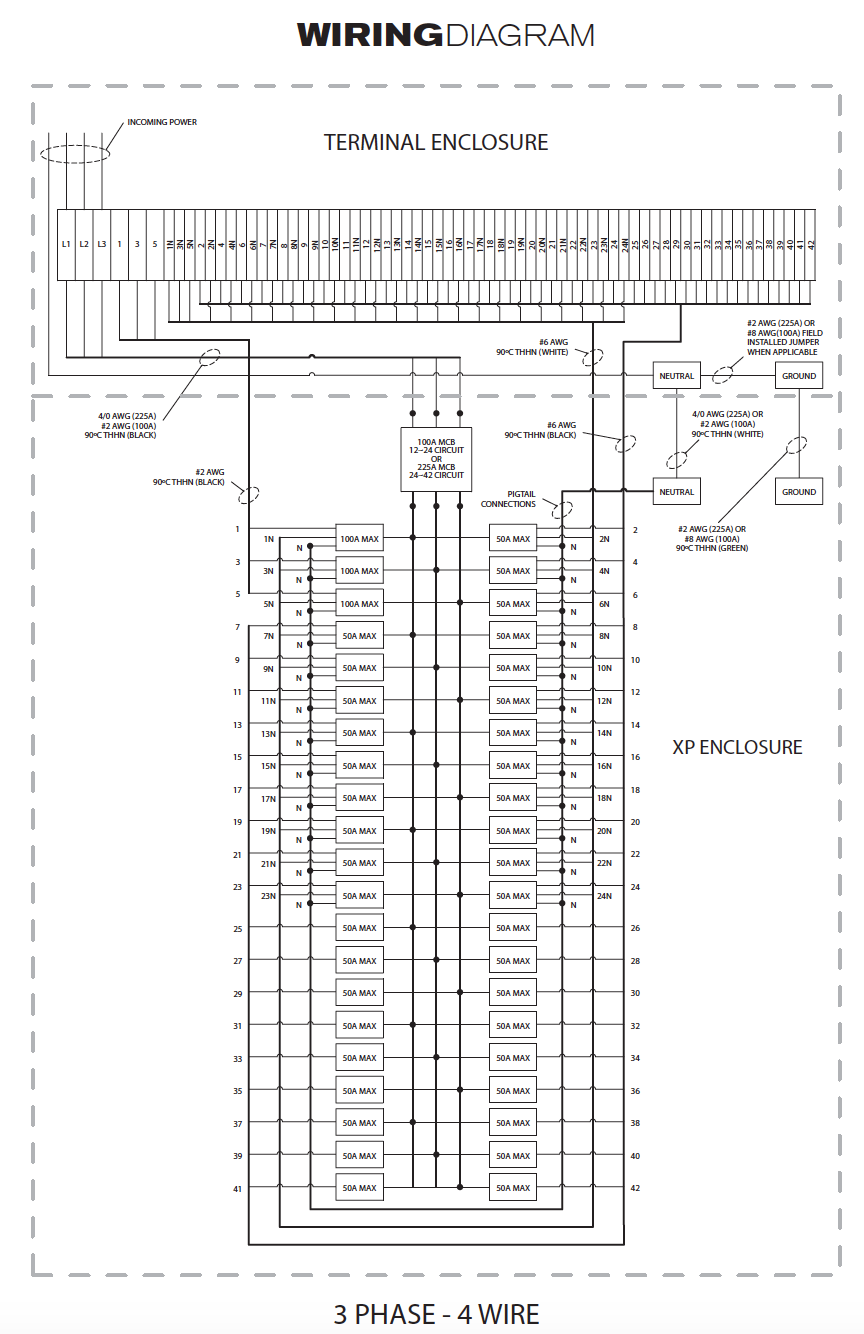

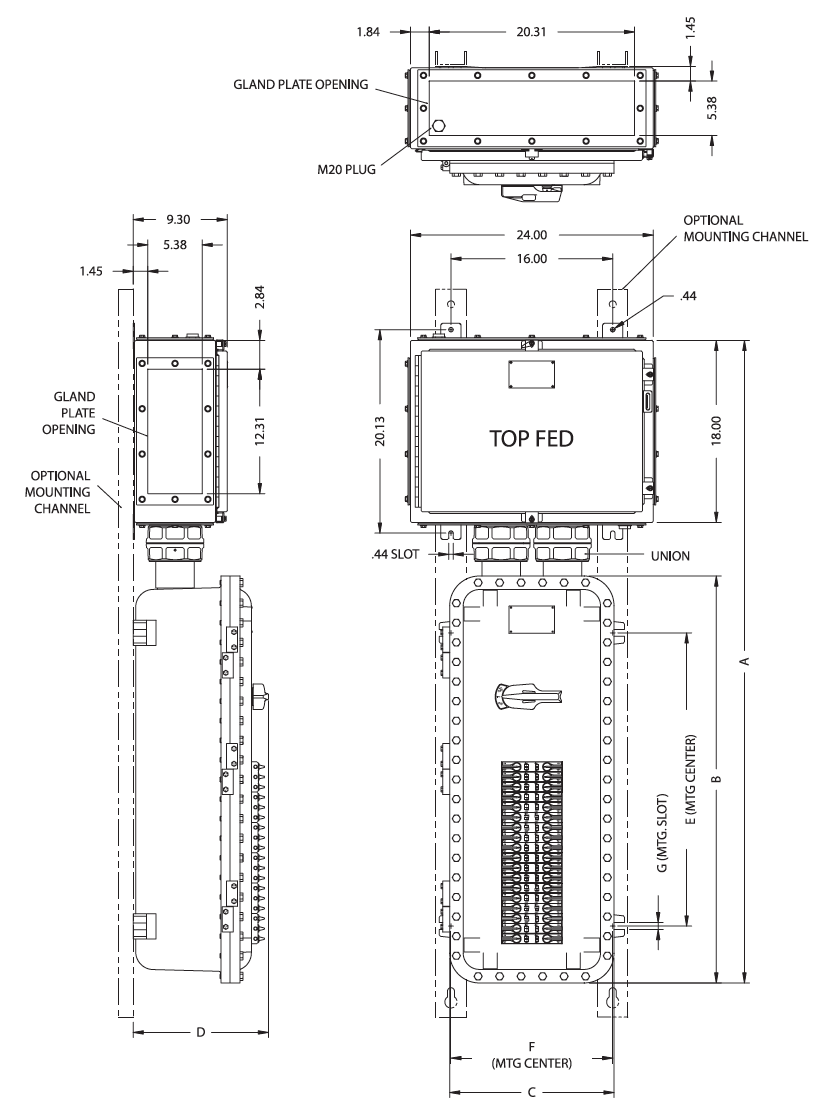

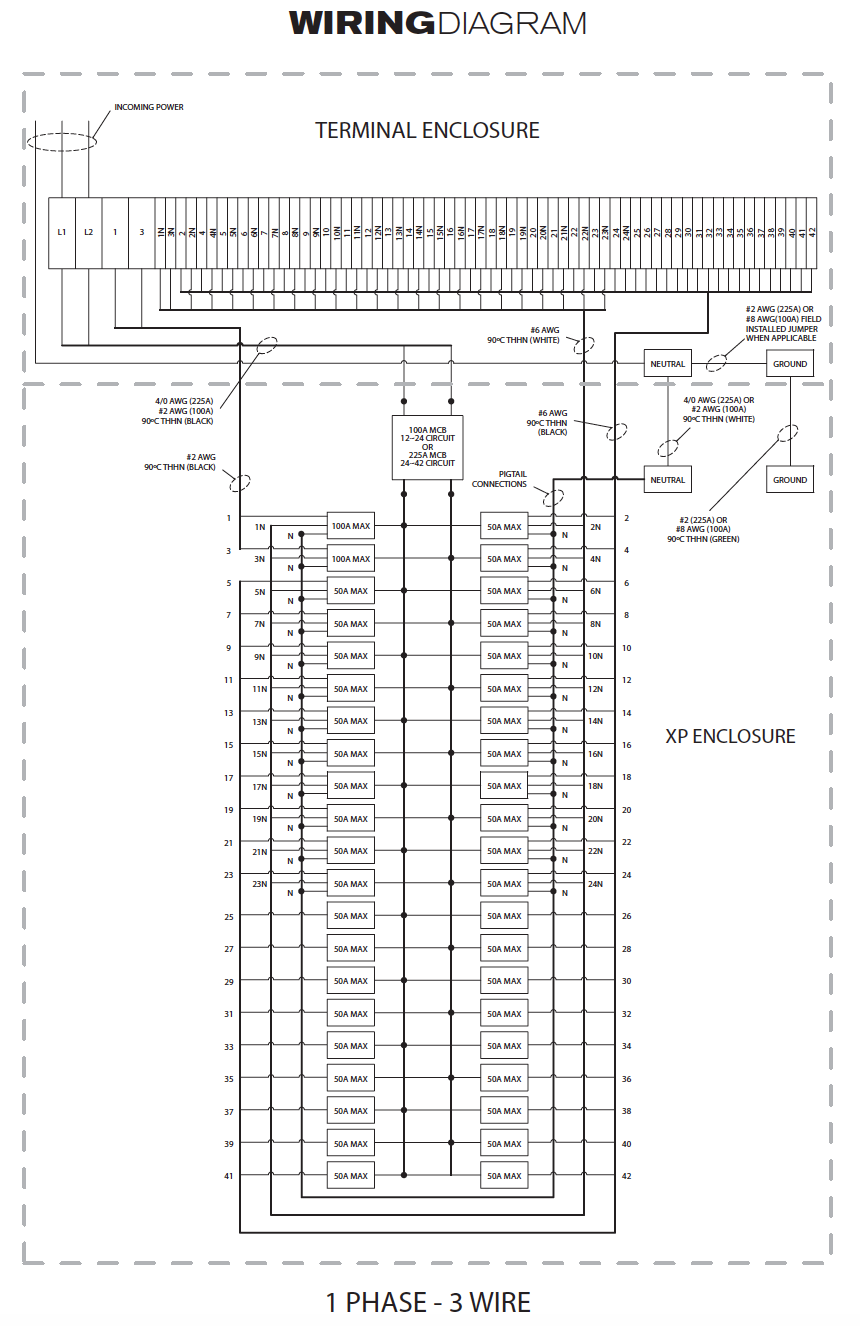

Factory Sealed Division 2 Panelboards - X2PB - Vertical Main Breaker

STANDARD FEATURES

• Cast aluminum breaker enclosure and stainless steel terminal enclosure

• Factory installed breakers are wired and sealed from the factory

• Terminal assembly wired to circuit breakers

• Spring-loaded through the door circuit breaker handles for 1P, 2P, and 3P breakers

• Padlock provision for breaker handles

• Copper bus bars

• Aluminum hinge with stainless steel hardware

• Pre-drilled for Eaton PRL1A / PRL2A / PRL3A panelboard chassis

• Circuit directory card on front cover

• One-piece, NEMA 4 water-tight gasket

• Premium, high-strength stainless steel quick thread cover bolts

• Internal grounding provisions

• Cast-on mounting feet

• Tumblast surface preparation for uniform, natural, aluminum finish

• Standard drilled & tapped conduit configurations



DESIGN OPTIONS

• Sub-Panels – Available in galvanized steel (XSM) or aluminum (XSA)

• Aluminum hinge kits (with stainless steel hardware)

• Non-removable hinges

• Customer specified drilling and tapping

• Installation of operators and auxiliary devices

• Custom machining – milling, counter-boring, spot-facing, blind-tapped holes, etc

• Installation and wiring of internal terminal blocks and control components

• UL Listed NNNY populated / wired control panels

• Multiple coating options for additional corrosion resistance

• Captive cover bolts

• Quad-lead cover bolts

• Auxiliary switches, breather/drain, shunt trip, under-voltage release

MATERIAL

• Enclosures cast from proprietary 359 aluminum alloy

• Standard stainless steel cover bolts are 316L

• Hinge blocks are 359 aluminum, pins and hardware are 303 stainless steel



HOW TO ORDER

1. Specify Catalog Number

2. Starting with Circuit #1 (Circuit #2 on back fed main breaker panelboards), specify circuit breaker type, number of poles, and ampacity.

3. Note:

• Handles will be provided for each breaker specified.

• Unused spaces will be plugged.

• For blank spaces requiring handles, specify handle

catalog number and circuit number.

4. Specify Entries, if any are required

• Attach layout sheet.
