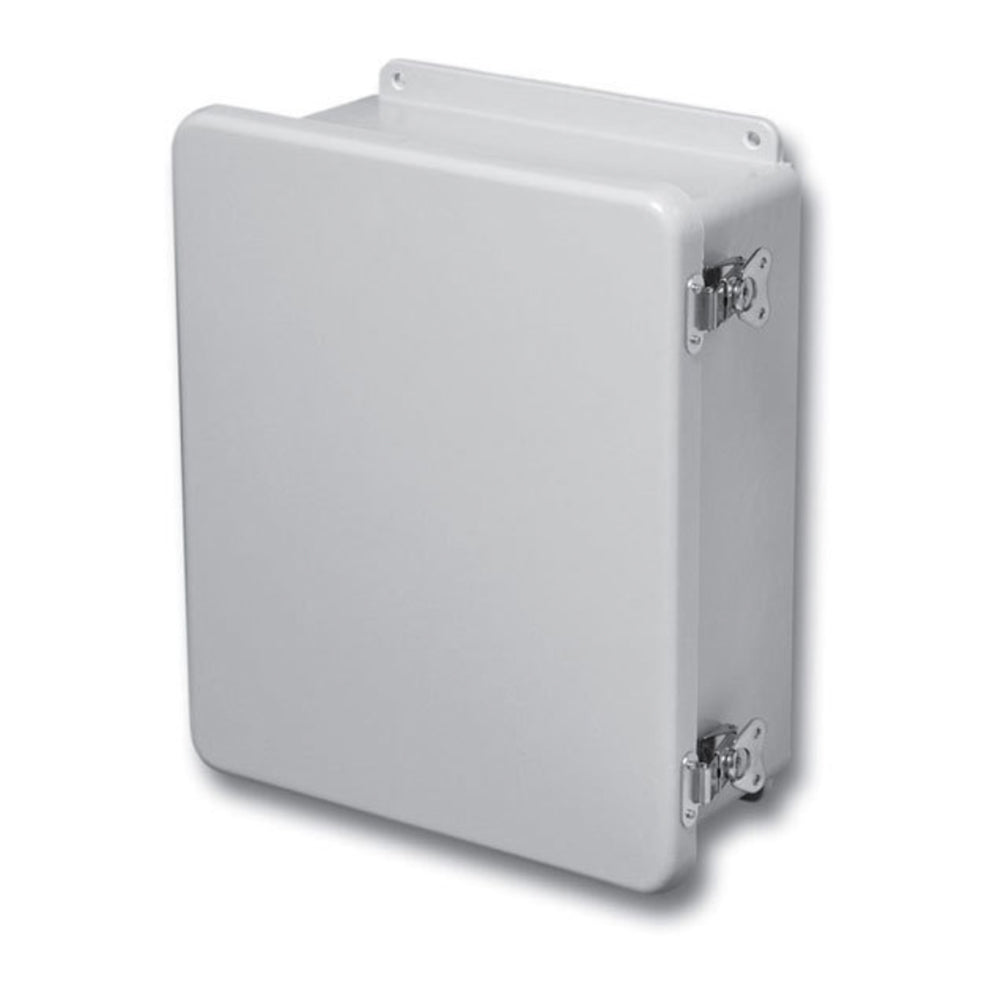

Fiberglass - Twist Latch Flat Cover Enclosures
Fiberglass - Twist Latch Flat Cover Enclosures
The twist latch fiberglass enclosure can be used indoors or outdoors to provide protection againstdust, dirt, oil and water. It is designed for use as a terminal wiring box, instrumentation housing or electrical controlenclosure where a hinged cover is desired.
Standard Features
Standard Features
• Twelve standard sizes available • Twist latch for quick entry
• Full length stainless steel hinged cover
• Integral mounting flange• Cover opens full 180°+
• Mounting bosses with threaded brass inserts for mounting panel installation
• Poured polyurethane gasket provides water-tight, dust-tight seal
• Light weight and impact resistant
Design Options
Design Options
• Mounting panels
• Drilled entries and cut-outs available
• Molded in custom colors
• Silk screening, paint, and decals
Materials
Materials
• Hot compression molded fiberglass reinforced polyester (thermoset)
• Non-corrosive and UV resistant
• Smooth surface, no color variations, swirls, or color pockets
• Non-flame propagating and chemical resistant
