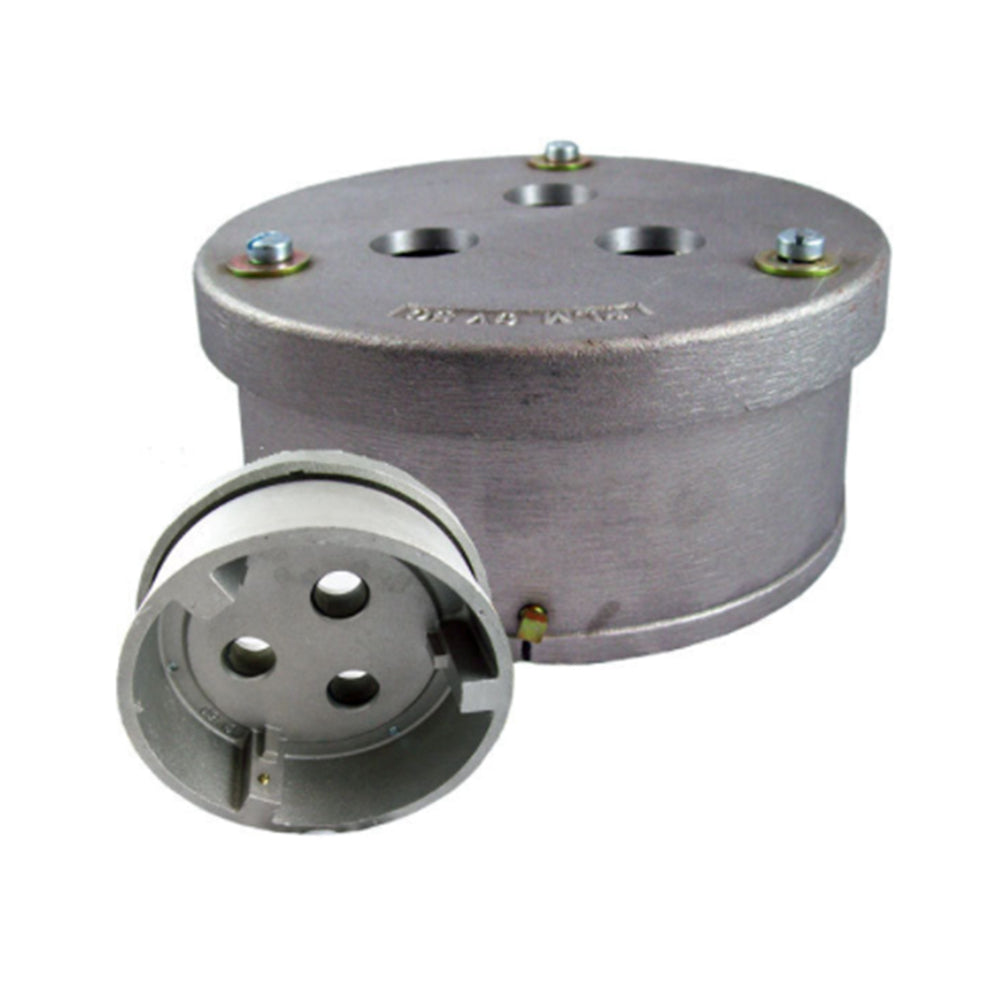

GenLo Conduit Ventilating Cable Supports

• Helps reduce temperatures in conduit, improving service life and load carrying capacity of the cable
• Neoprene gasket provides watertight seal and cable support
• Set screws secure the ventilator to conduit

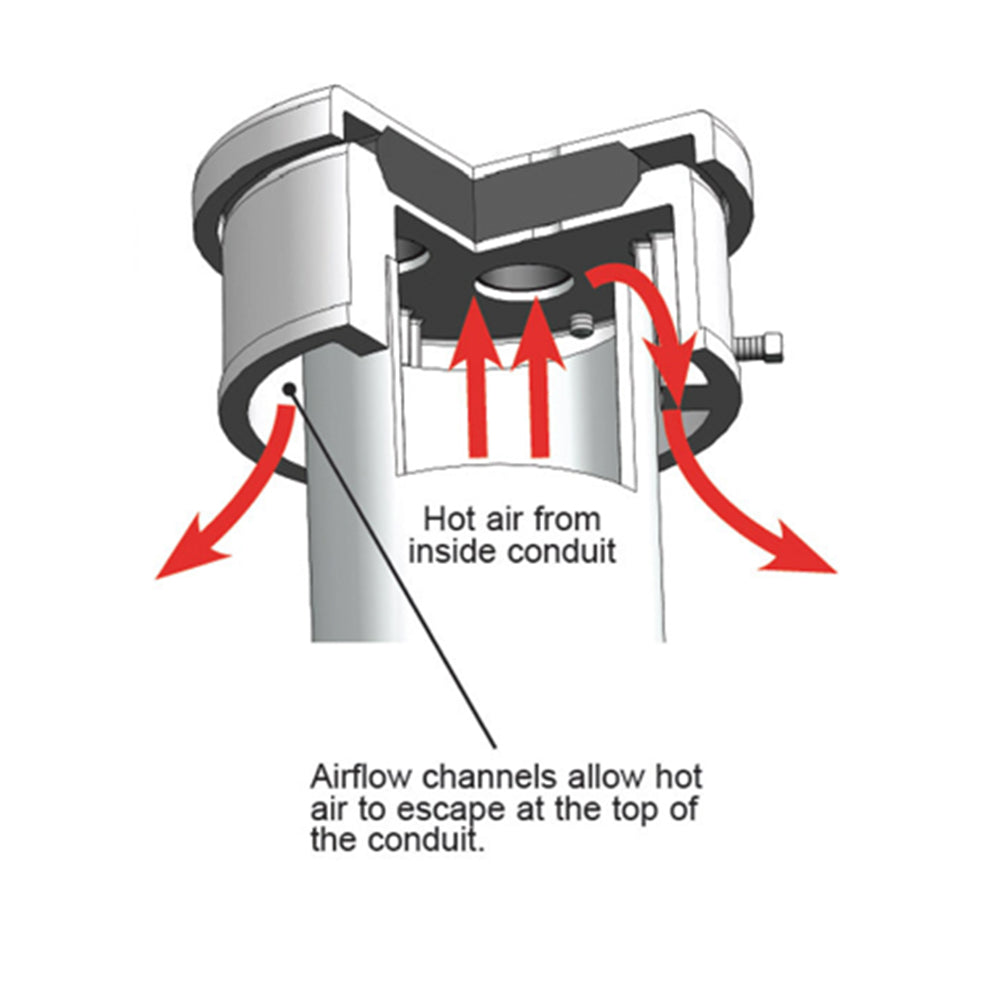

• For supporting and sealing cable risers and allowing escape of heated air from conduit
• Type CV Supports are designed for use at top of conduit where cable extends into air

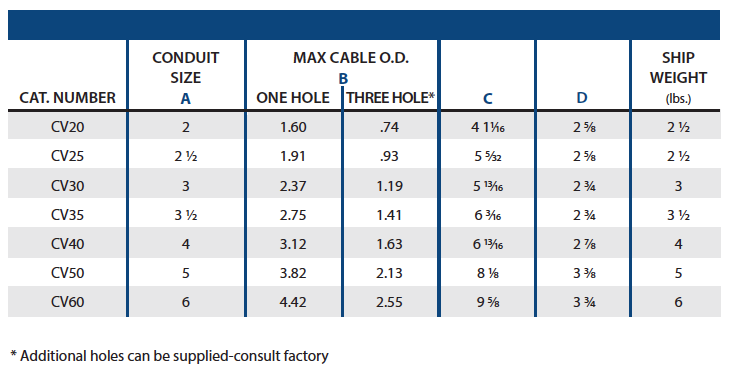

1. Select catalog number of fitting
2. Indicate number and diameter of cables
3. Where used with interlocked armored cable, specify whether gasket to fit over jacket or over armor
