Stainless Steel Enclosures - NEMA TYPE 4X JIC - JN4XHSS Series
Stainless Steel Enclosures - NEMA TYPE 4X JIC - JN4XHSS Series

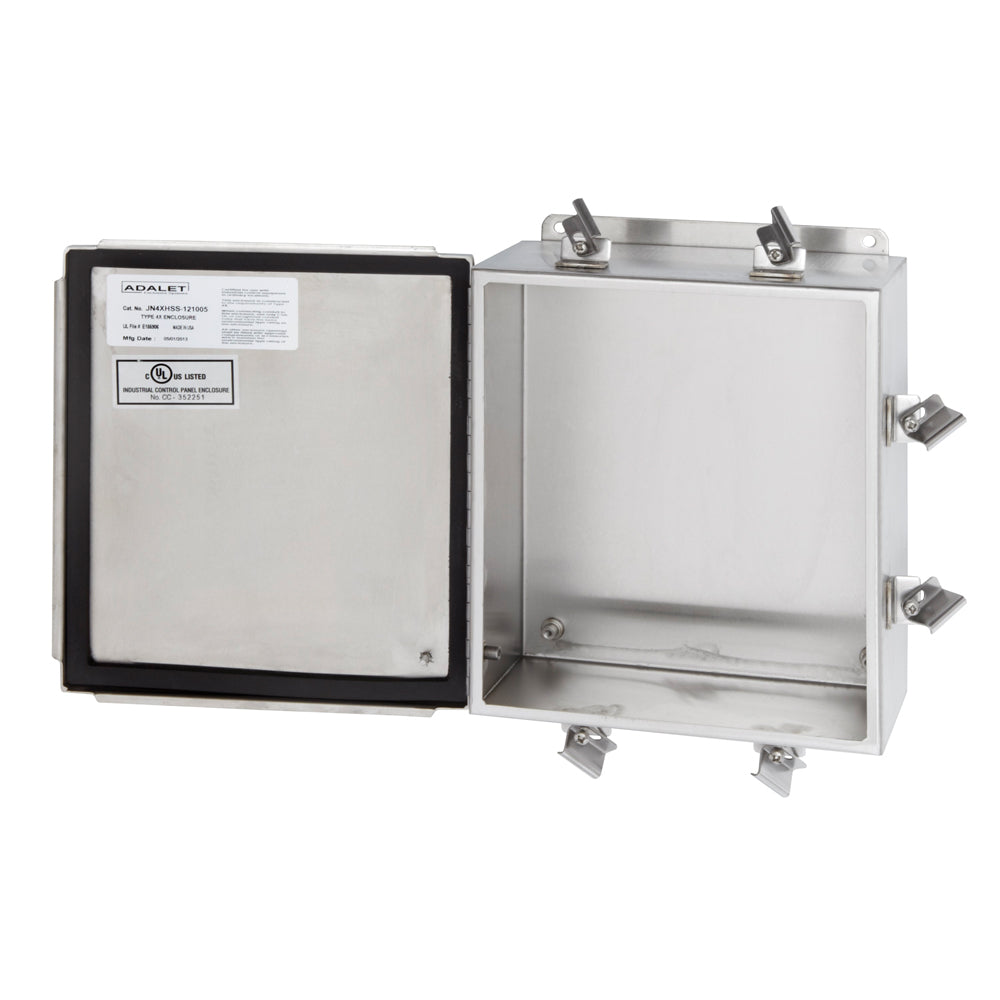

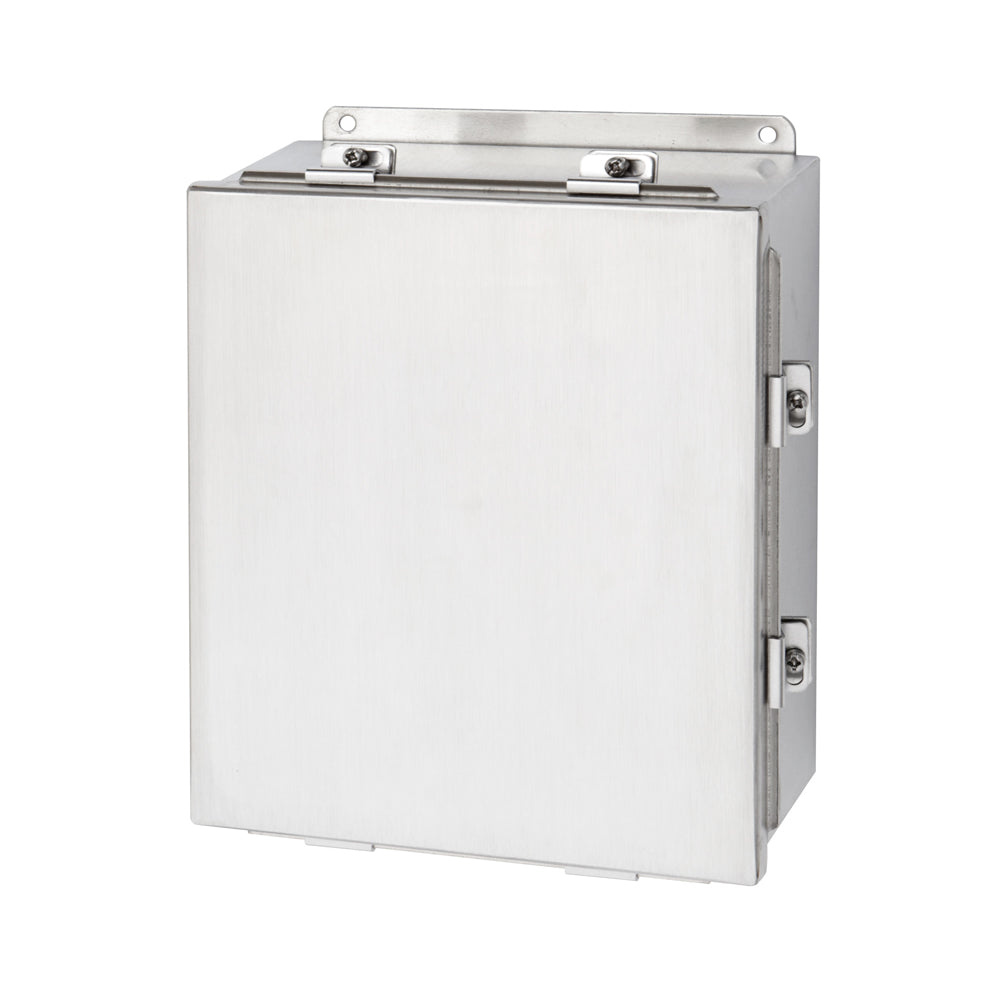

Continuous Hinge Clamped Cover Enclosures : Adalet's JN4X series enclosures are available in Type 304 and 316L stainless steel with a brushed finish. The enclosurehas continuously welded seams ground to a smooth finish. It also comes complete with four 10-32 weld nuts (formounting optional panels). Grounding studs are provided on the inside of the box and door. Wall mounting back bracketsare welded on the top and bottom outside. The JN4XHSS cover is sealed with a one-piece neoprene gasket and is securedto the enclosure with a continuous stainless steel piano hinge on one side and stainless steel door clamping hardware onthree sides. There are no knock-outs or holes in the cover or body. A hardware kit is included.
Standard Features
Standard Features
• Continuous hinge (removable hinge pin)
• Wall mounting flange / feet
• Watertight urethane gasket
• Stainless steel clamps and screws
• Four #10-32 weld nuts for optional mounting panel
• Grounding studs on inside of box and cover
Design Options
Design Options
• Painted steel and stainless steel mounting panels
• Laser cut entries or cut-outs
• Terminal blocks or other component assembly
• Swing panel / dead front panel
• Padlock provisions
• Quick release latches
• Epoxy paint or powder coating
• Custom sizes
• 12 gauge material thickness
Materials
Materials
• 12 and 14 gauge / Type 304 or 316L stainless steel
• Stainless steel hardware
• #3 / #4 brushed finish
