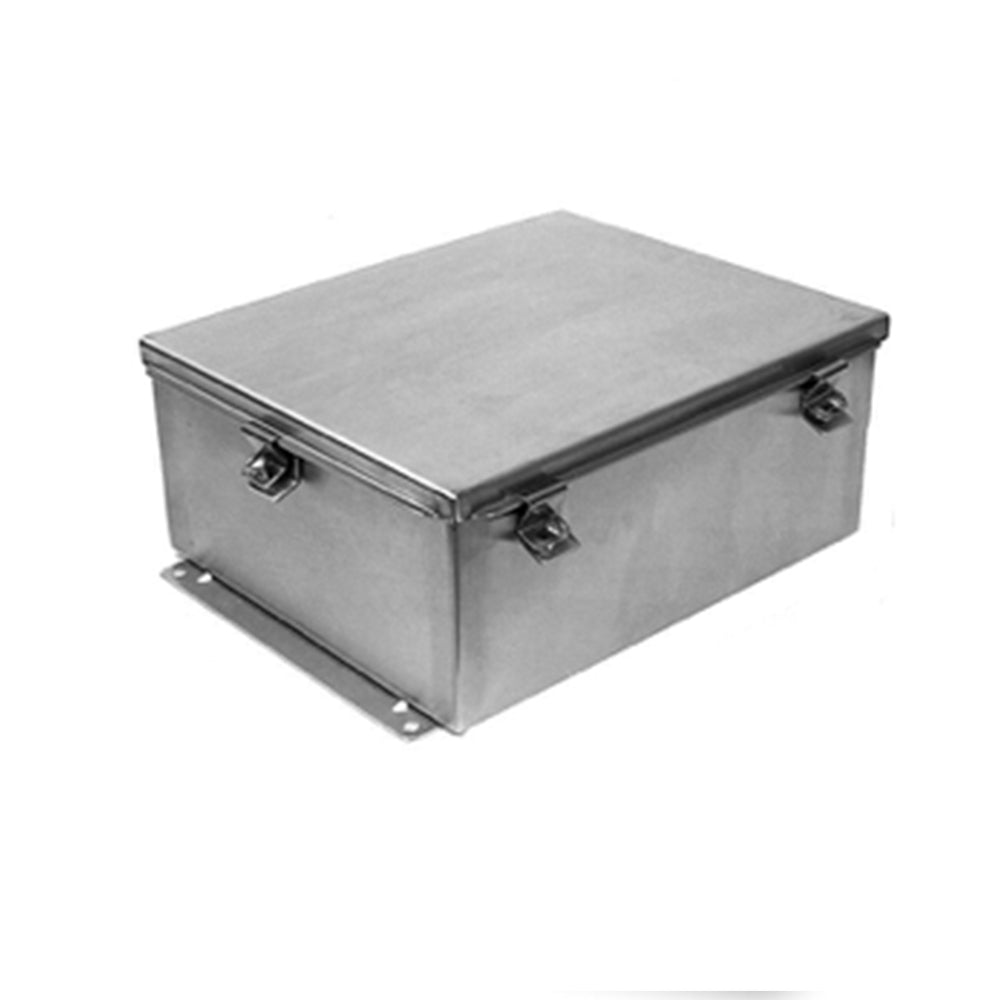

Stainless Steel Enclosures - NEMA TYPE 4X JIC - JN4XSS Series

Stainless Steel Enclosures - NEMA TYPE 4X JIC - JN4XSS Series

Adalet’s JN4XSS series wall-mounted JIC enclosures are designed to provide protection, indoors and outdoors, againstdust, dirt, oil and water for items such as pneumatic or hydraulic instruments, transformers, and junction wiring. Theseenclosures are suitable for use in areas such as petrochemical plants, dairies, breweries, food processing areas and similarenvironments where they are subject to frequent high pressure hosing and generally wet conditions. They are also designedfor use in areas where severe corrosion problems exist. Type 316L stainless steel enclosures are also suitable for use inoffshore applications.

Standard Features

• Wall mounting flange / feet

• Watertight urethane gasket

• Stainless steel clamps and screws

• Four #10-32 weld nuts for optional mounting panel

• Grounding studs on inside of box and cover

Design Options

• Painted steel and stainless steel mounting panels

• Laser cut entries or cut-outs

• Terminal blocks or other component assembly

• Swing panel / dead front panel

• Padlock provisions

• Quick release latches

• Epoxy paint or powder coating

• Custom sizes

• 12 gauge material thickness

Materials

• 12 and 14 gauge / Type 304 or 316L stainless steel

• Stainless steel hardware

• #3 / #4 brushed finish

View full details

Product Information

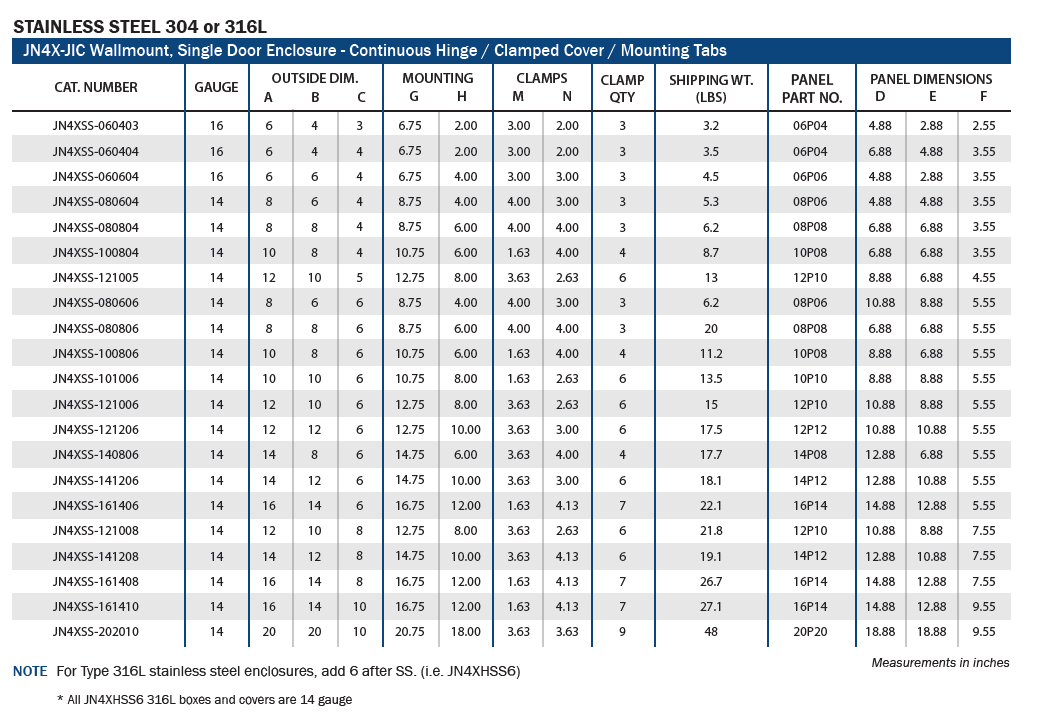

Catalog

Drawings

JN4XSS-040403 | DWG | PDF

JN4XSS-060403 | DWG | PDF

JN4XSS-060404 | DWG | PDF

JN4XSS-060604 | DWG | PDF

JN4XSS-080604 | DWG | PDF

JN4XSS-080606 | DWG | PDF

JN4XSS-080804 | DWG | PDF

JN4XSS-100804 | DWG | PDF

JN4XSS-100806 | DWG | PDF

JN4XSS-101006 | DWG | PDF

JN4XSS-121005 | DWG | PDF

JN4XSS-121008 | DWG | PDF

JN4XSS-121206 | DWG | PDF

JN4XSS-140806 | DWG | PDF

JN4XSS-141206 | DWG | PDF

JN4XSS-141208 | DWG | PDF

JN4XSS-161406 | DWG | PDF

JN4XSS-161408 | DWG | PDF

JN4XSS-161410 | DWG | PDF

JN4XSS-202010 | DWG | PDF
