NEMA Type 4X Stainless Steel Dead Front Panelboards
NEMA Type 4X Stainless Steel Dead Front Panelboards

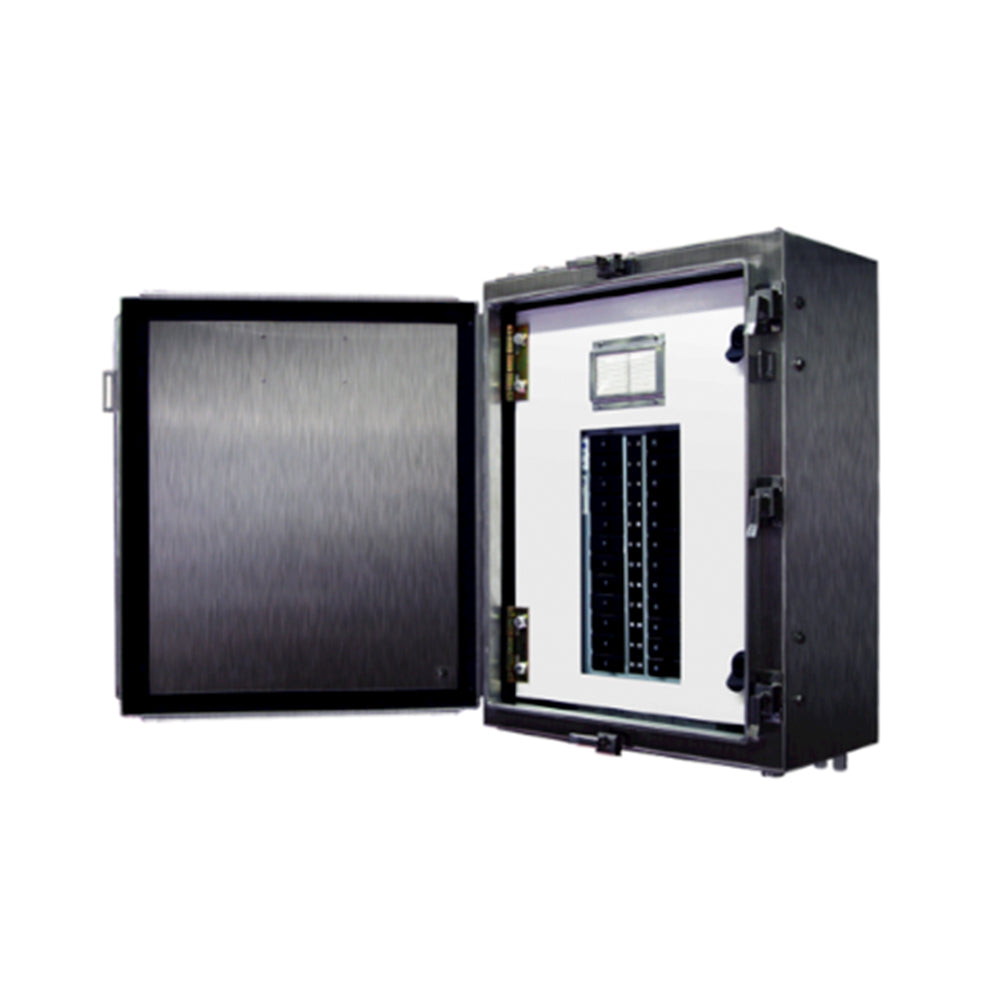

A dead front, swing panel version is available with a swing panel and quick access latches. The dead front, swing panel version isolates the wiring space, wiring gutter, and termination area which would otherwise be exposed when the door is opened.
Standard Features
Standard Features
• Type 4X, 12 & 13 Enclosed Panelboard.
• Circuit Breaker Operating Handles–aluminum handles (stainless steel handle option available, consult factory) with stainless steel bushings and shafts. V-ring seals, gaskets and sealing nuts provided for water tight seal. Handles are spring loaded allowing for the door to be closed with the breaker toggle in any position. GFI/EPD handles are colored green and include external test capabilities.
• Lockplate provision provides padlocking for each individual breaker in either the “on” or “off” position.
• Individual operating labels identify breaker position (on, off, tripped) the circuit number and breaker amperages.
• Circuit Directory Holder Card.
• Back Fed Main Breaker Assemblies provided with “Main” Nameplate.
