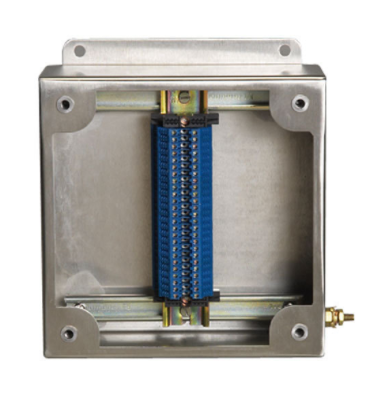

Increased Safety Terminal Enclosures - TSC Series

• Type 316L Stainless steel captive hex head, slotted cover screws

• Universal DIN rail mounting system (Except 050503)

• One-piece, NEMA 4 / IP66 water-tight gasket

• Internal/external grounding provisions

• Welded-on mounting flange with 0.31” clearance holes

• Ambient temperature range -40°C to +70°C

• Gland Plates (6” depths or greater) with continuous gasket

• Painted steel or stainless steel inner mounting panel

• Drilled entries / cut-outs

• Stopping plugs and breather / drain

• Terminal block assemblies and ground bars

• Cable glands

• Window kits

• Custom sizes

• Multiple coating options for additional corrosion resistance

• Enclosure and gland plates Type 304 or 316L

• Captive cover screws and hardware are 316L

• NEMA 4 / IP66 water-tight gasket is form in place (FIP)

• Box / cover constructed from 14 gauge (0.75) stainless steel with #3/#4 brush finish

• Gland plates constructed from 10 gauge (.1345) stainless steel with #3/#4 brush finish

• Silicone gasket

• Gland plate gasket constructed from 1/8” Bisco silicone with Acrylic PSA
