NEMA Type 4X Stainless Steel Panelboards - with Exterior Operating Handles
NEMA Type 4X Stainless Steel Panelboards - with Exterior Operating Handles

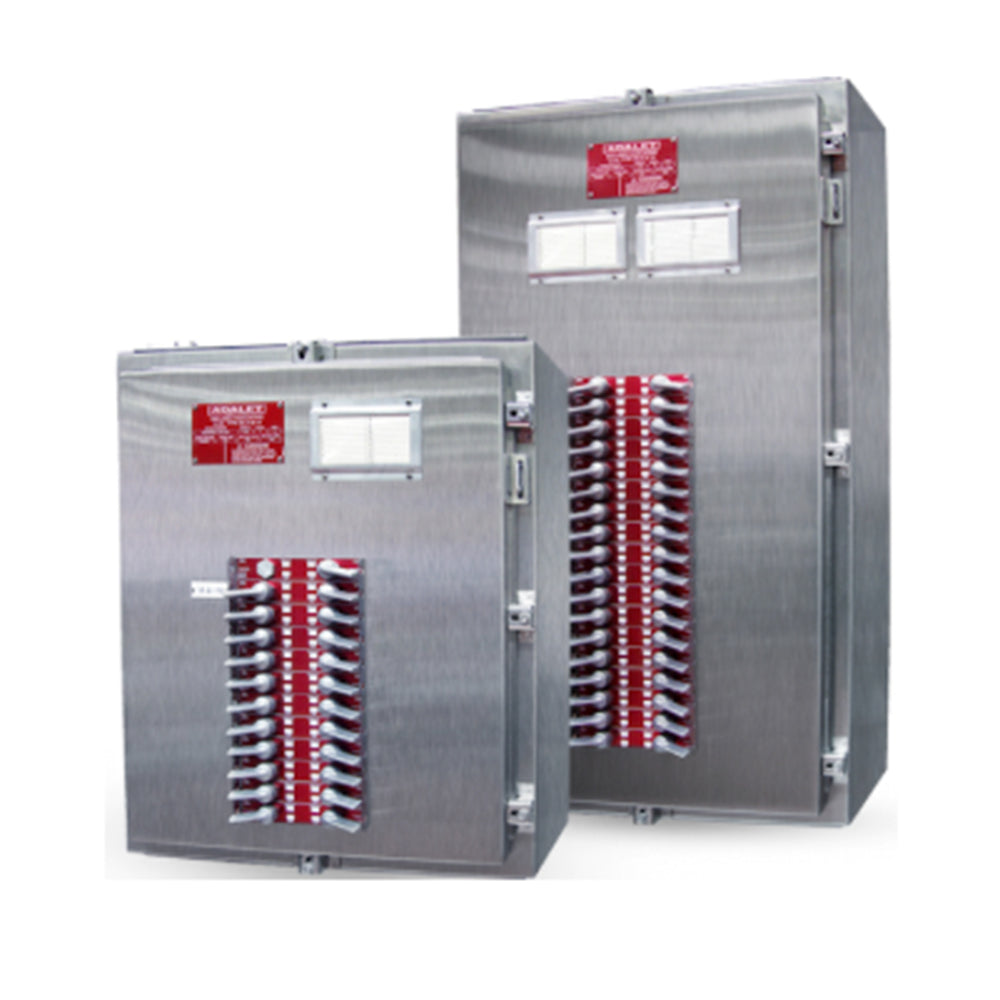

Designed for use in applications where harsh chemicals or hose down conditions exist, the Adalet N4XPB & N4XPBH series stainless steel panelboards provide a watertight, non-corrosive solution for controlling lighting and appliance, power circuits, and power distribution in industrial applications requiring branch power distribution, over current, and short circuit protection.
Standard Features
Standard Features
• Type 4X, 12 & 13 Enclosed Panelboard

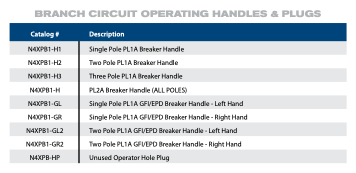

• Circuit Breaker Operating Handles–aluminum handles (stainless steel handle option available, consult factory) with stainless steel bushings and shafts. V-ring seals, gaskets and sealing nuts provided for water tight seal. Handles are spring loaded allowing for the door to be closed with the breaker toggle in any position.
• GFI/EPD handles are colored green and include external test capabilities.• Lockplate provision provides padlocking for each individual breaker in either the “on” or “off” position.
• Individual operating labels identify breaker position (on, off, tripped) the circuit number and breaker amperages.
• Circuit Directory Holder Card
• Back Fed Main Breaker Assemblies provided with “Main” Nameplate.
