Explosionproof Instrument Housings - XIHL Series -Large
Explosionproof Instrument Housings - XIHL Series -Large

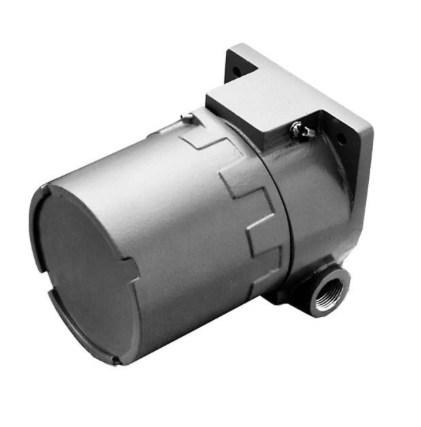

Our 4" ID enclosures, part of our XIHL (large) series, are ultra-durable, explosionproof, and corrosion resistant. Suitable for applications where extra safety is essential, these single ended housings come with a variety of unique design options in addition to its standard features.
Standard Features
Standard Features
- 4” ID Enclosures
• 3/4" NPT conduit feed-through hubs offset for maximum clearance and capacity
• 1/2" thick base for blind tapped instrument mounting holes in any location

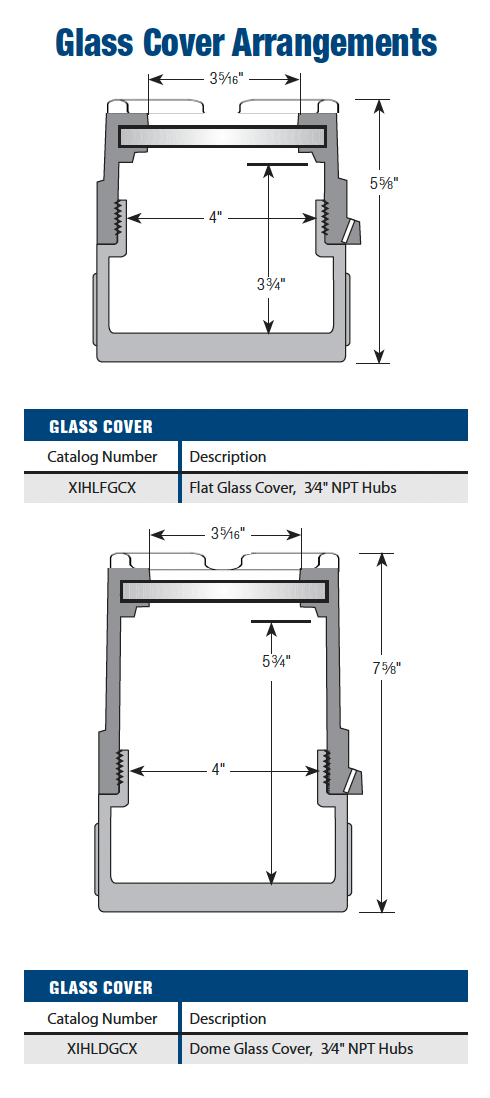

• Glass cover models have a large 3-5/8" diameter, tempered glass window for local read out
• Buna-Nitrile rubber gasket for NEMA Type 4X watertight applications
• Corrosion resistant, "safety blue" polyester powder coating (other colors available)
• Internal and external ground screws and tamper resistant cover set screw for extra safety
• Stainless steel hardware
Design Options
Design Options

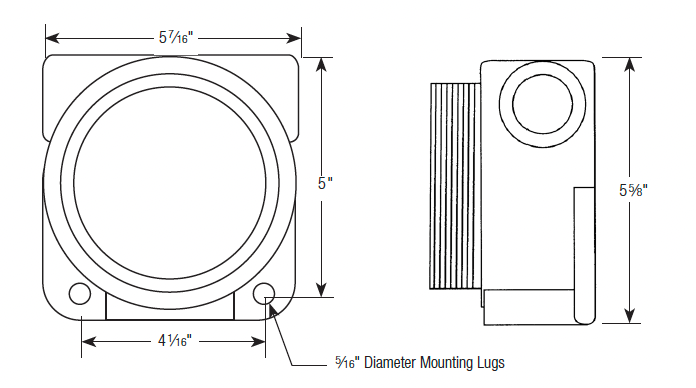

• Four 1/4-20 UNC holes in front boss for bracket mounting
• Front boss and backwall modifications: 1/2" to 1" NPT, 1/2" to 3/4" NPSM or 20mm for sensor, probe or conduit entry. Consult factory for other sizes.
• 1/2" NPT reducers are available - add suffix "2" to catalog number
